TGD L20 III | TengoDistill 20L Advanced Fractional Column Still for High-Purity Spirits
TGD L20 III: Advanced 20L fractional column still. Reach 95%+ ABV with precision multi-plate reflux. Turnkey T2 copper system for R&D labs.
Specifications
- Model
- TGD L20 III (Fractional Series)
- Capacity
- 20 Liters / 5.3 Gallons
- Primary Material
- T2 Red Copper / SUS304
- Target ABV
- Up to 95%+ (Neutral Spirits)
- Heating Method
- Jacketed Electric / Water Bath
- Dimensions
- 550 x 630 x 1800 mm
- Configuration
- Column type
TGD L20 III | The Gold Standard for Precision Fractional Distillation
The TGD L20 III is a premier 20-liter (5.3 Gallon) Fractional Distillation System specifically designed for high-end craft spirit development and laboratory-grade research. Engineered to deliver unmatched reflux control, this unit enables distillers to reach 95% ABV purity with surgical precision, making it the indispensable tool for creating premium Vodka, high-proof Gin, and experimental neutral spirits.
The Fractional Powerhouse: Unrivaled Purity
- Precision Multi-Plate Column: The L20 III features an elongated vertical reflux column with professional-grade bubble plate stages. This high-reflux architecture maximizes vapor-liquid contact, facilitating the absolute separation of congeners for an ultra-pure final "heart."
- High-Purity T2 Red Copper Catalysis: The entire vapor path—including the kettle dome and internal column trays—is handcrafted from 99.9% T2 red copper. This provides the massive surface area required for effective sulfur removal, ensuring the refined, "soft" mouthfeel of top-tier spirits.
- Integrated Agitation System: Equipped with a high-torque motor to ensure uniform heating of the wash, preventing hot spots and ensuring a stable, consistent vapor flow throughout the distillation run.
Industrial Engineering in a Compact Footprint
- Sanitary Skid-Mounted Design: Pre-assembled on a heavy-duty SUS304 stainless steel frame. This "Plug-and-Play" setup is ready for immediate deployment in micro-distilleries or university labs with zero assembly required.
- Advanced Process Monitoring: Outfitted with high-fidelity analog pressure gauges and digital temperature sensors at every stage, providing master distillers with total data-driven control over the distillation curve.
- World-Class Finish: Expert TIG welding with a mirror-polished interior (Ra < 0.6μm). The system is fully CIP (Clean-in-Place) compatible, ensuring zero cross-contamination between different spirit batches.
Technical Specifications
Component | Specification |
|---|---|
Model | TGD L20 III (Fractional Series) |
Batch Capacity | 20 Liters / 5.3 Gallons |
Target ABV | Up to 95%+ (Neutral Spirits) |
Primary Material | 99.9% T2 Red Copper & SUS304 |
Heating Method | Jacketed Electric / Water Bath |
Compliance | CE Certified / Food-Grade Sanitary |
4. 图像命名清单 (文件名直接作为 ALT TEXT)
基于图片特点，锁定“分馏系统”、“高纯度酒精”、“实验室设备”等溢价搜索词。
tengodistill-tgd-l20-iii-20l-advanced-fractional-column-still-main-white(主图 10002：白底专业视角)

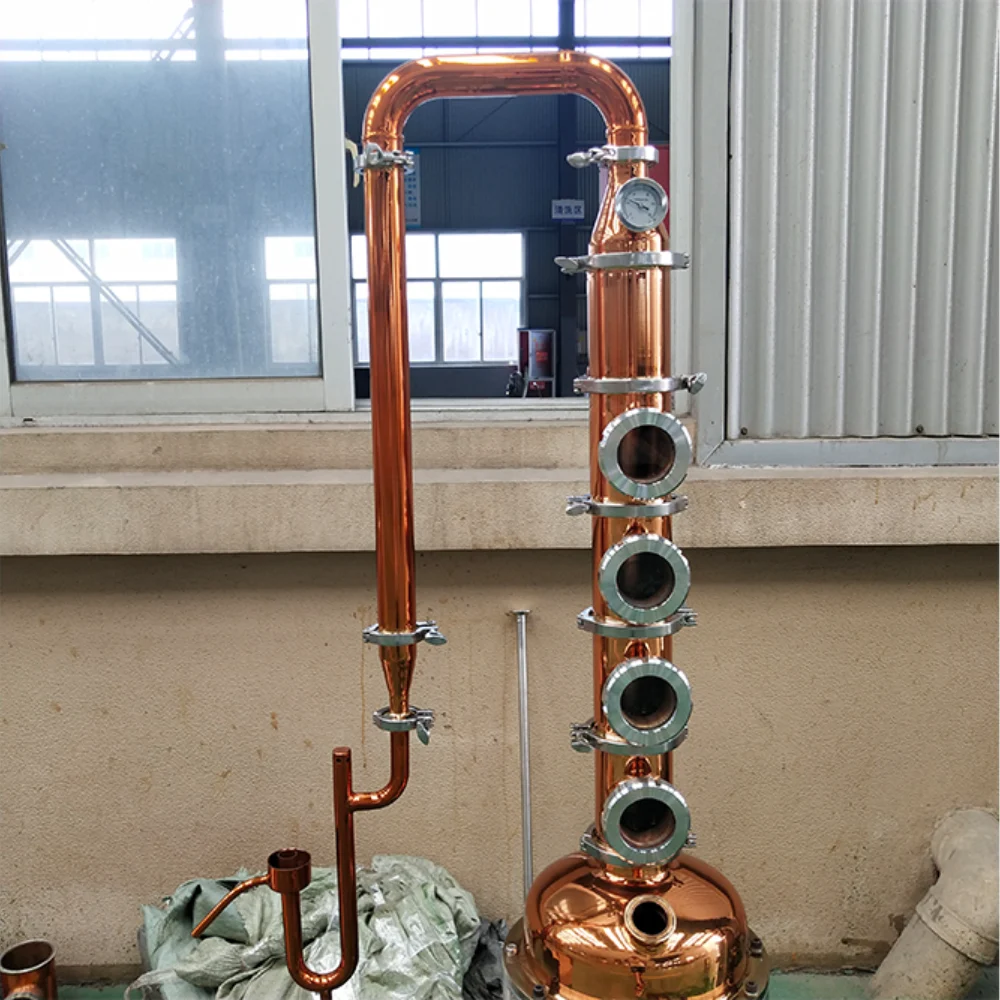

20l-high-purity-spirit-distillation-tower-with-multi-stage-reflux(全景 10003：强调塔身高度与专业感)

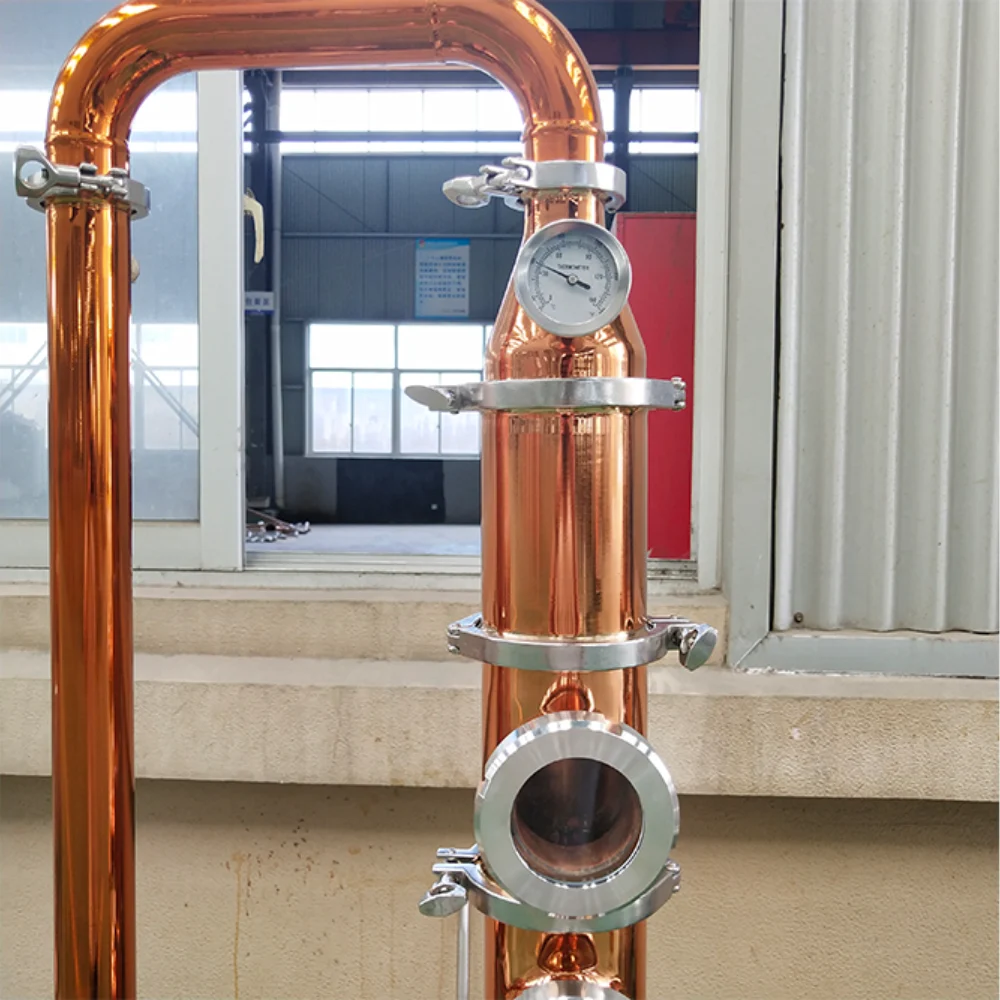

precision-analog-pressure-gauge-and-vapor-path-connection-detail(细节 10004：突出仪表和安全性)

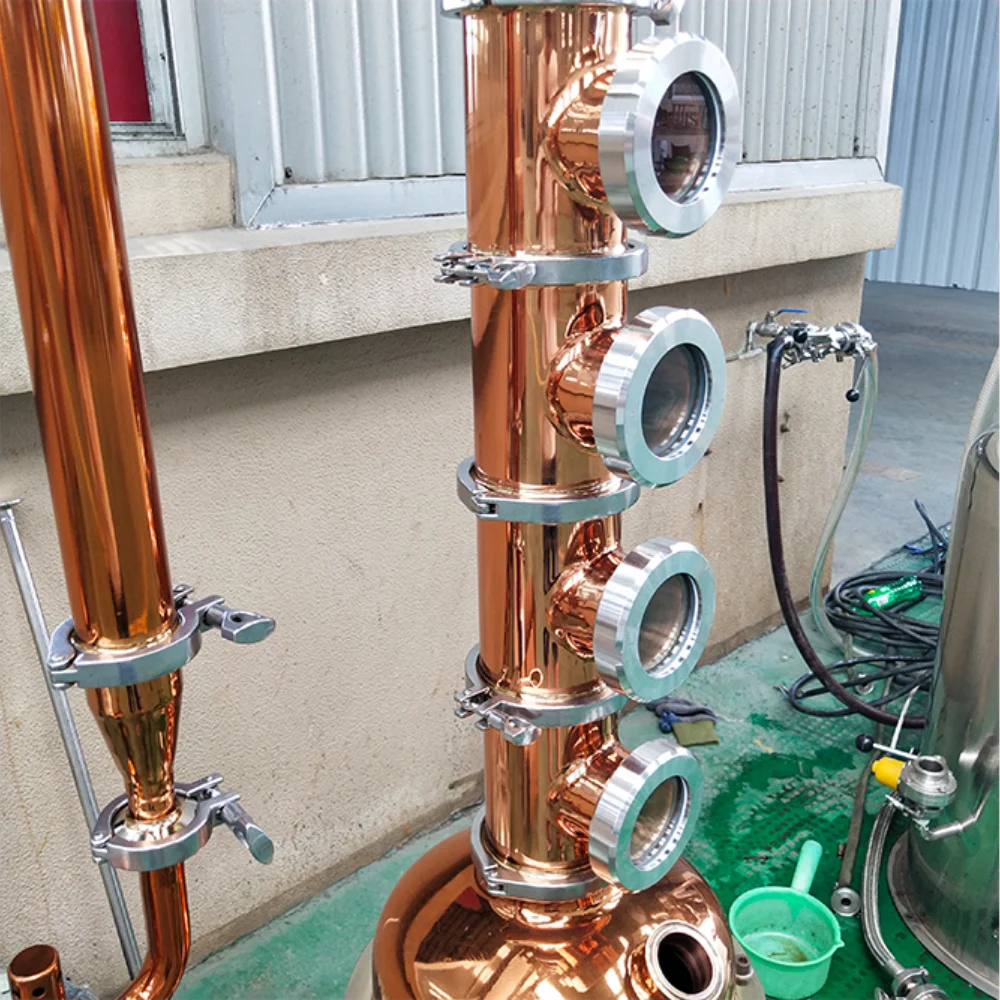

copper-bubble-plate-stages-for-precise-abv-reflux-control-20l(细节 10005：针对“塔盘/回流控制”关键词)

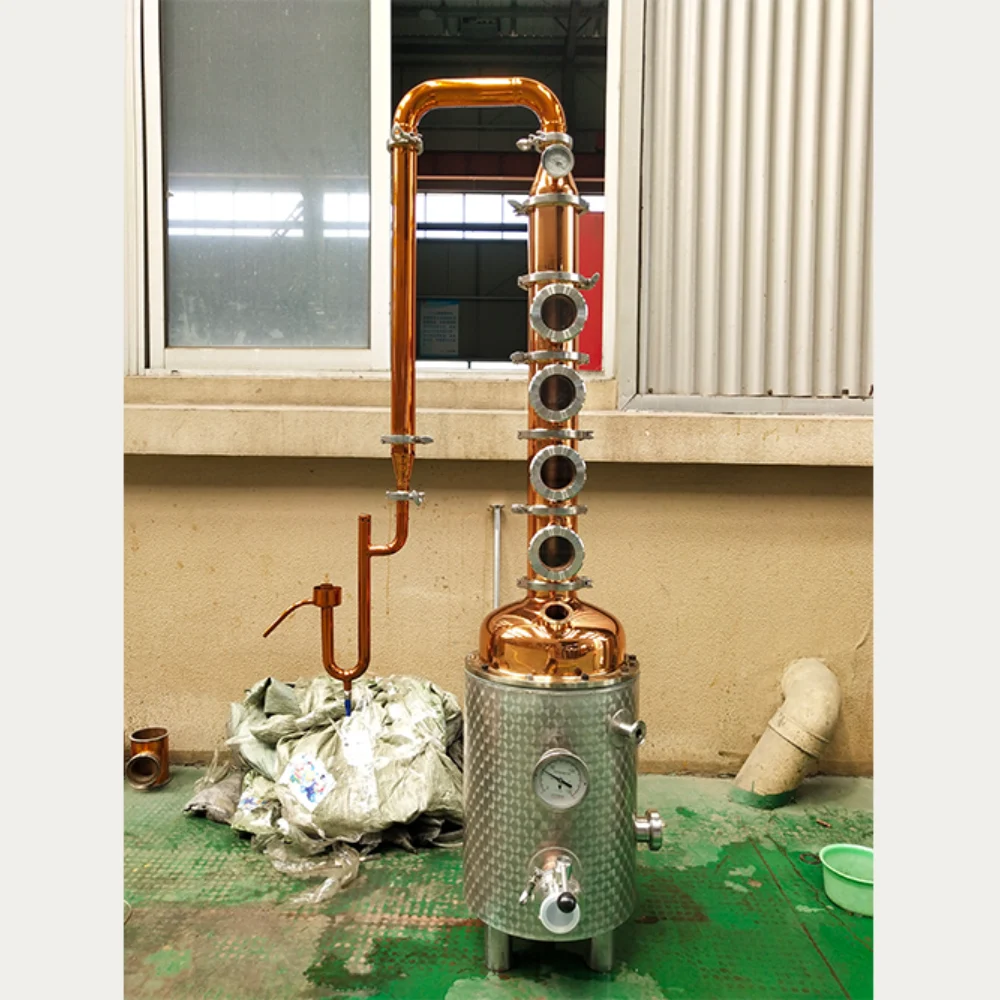

compact-pilot-scale-distillery-setup-for-rd-labs-and-craft-spirits(侧视 10006：展示紧凑结构与方案感)

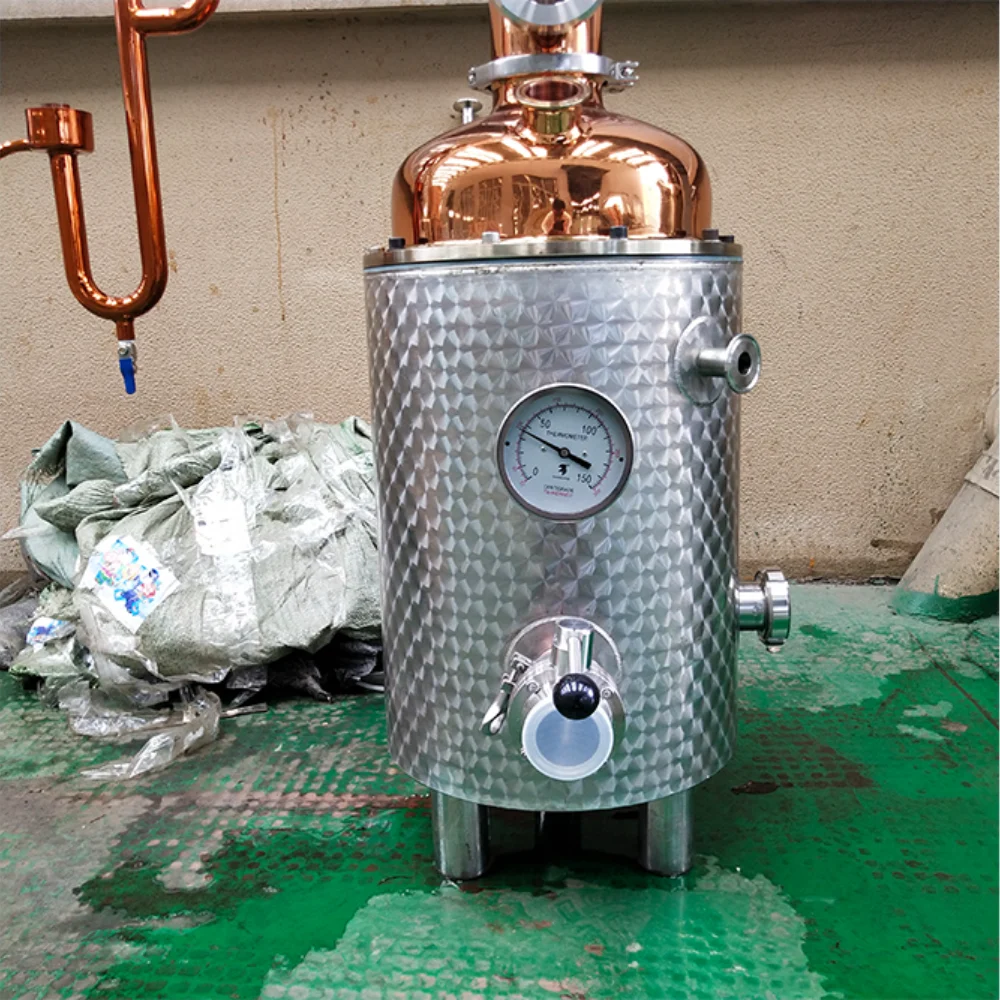

jacketed-distillation-kettle-with-digital-temperature-monitoring-detail(特写 10007：突出夹层锅体与温控)
