TGD L20 II | TengoDistill 20L Professional Pilot Fractional Column Still
TGD L20 II: Pro 20L fractional column still. High-reflux for 95% ABV. T2 copper, turnkey & CE certified. Ideal for R&D labs and nano-distilling.
Specifications
- Model
- TGD L20 II (Fractional Series)
- Capacity
- 20 Liters / 5.3 Gallons
- Primary Material
- T2 Red Copper / SUS304
- Target ABV
- Up to 95%+ (Neutral Spirits)
- Heating Method
- Jacketed Electric / Water Bath
TGD L20 II | The Precision Laboratory Platform for High-Purity Spirits
The TGD L20 II is a high-performance 20-liter (5.3 Gallon) Fractional Distillation System engineered for master distillers, chemical labs, and craft entrepreneurs. Despite its compact footprint, this system is a true "Scale-Down" of our industrial plants, providing the precise reflux control needed to reach 95% ABV purity in a single run.
The R&D Powerhouse: Purity & Precision

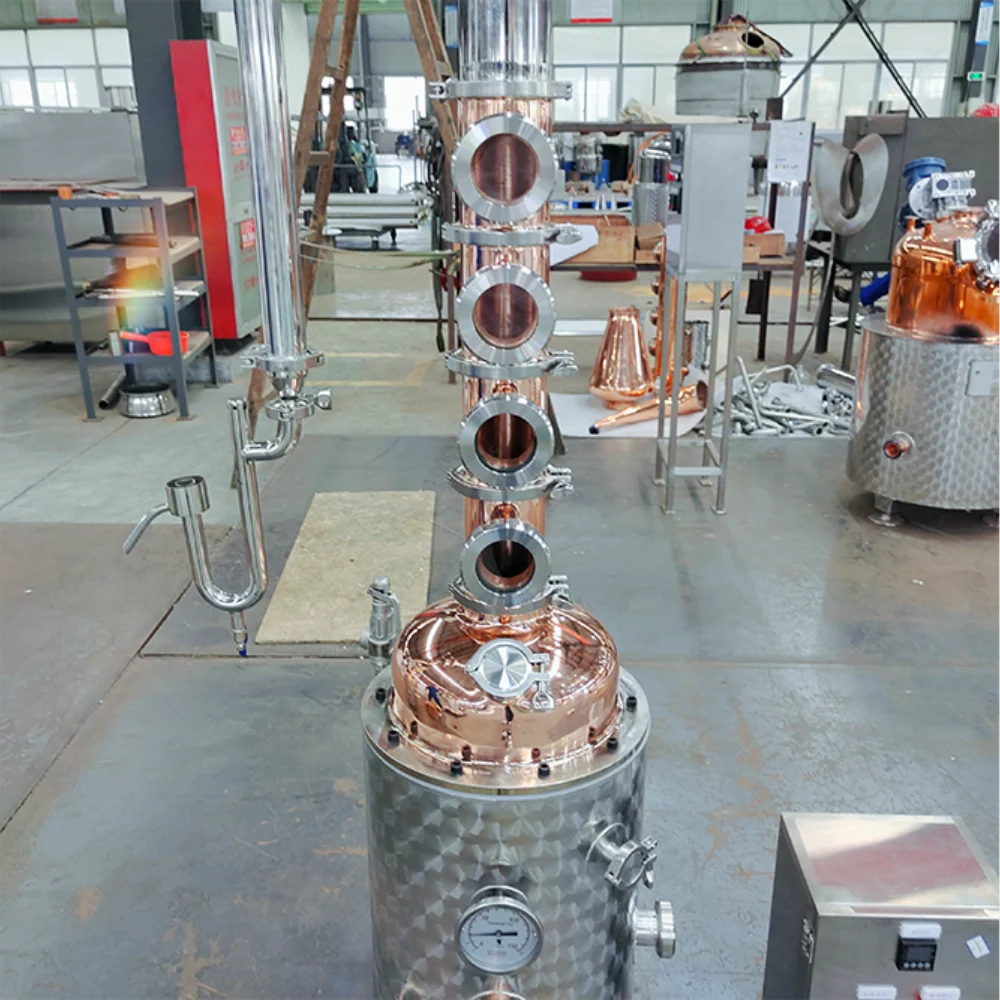

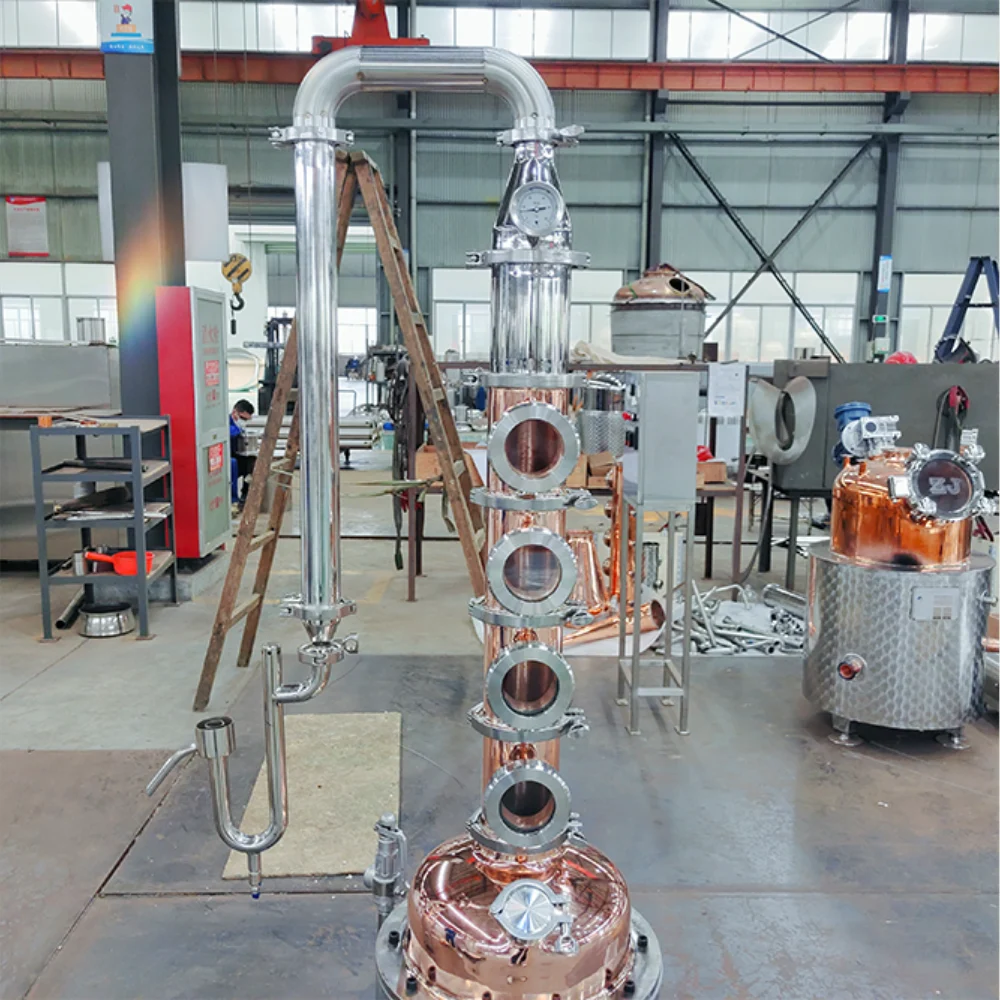

- High-Reflux Multi-Stage Column: Features a specialized vertical column with multiple bubble plate stages. This architecture allows for the extreme separation of "heads, hearts, and tails," making it the ultimate tool for producing ultra-clean Vodka, Gin base, and Neutral Spirits.
- Premium T2 Red Copper Catalysis: The kettle dome and critical column internals are handcrafted from 99.9% T2 red copper. This ensures maximum catalytic sulfur removal, delivering the refined mouthfeel required for premium artisanal spirits.

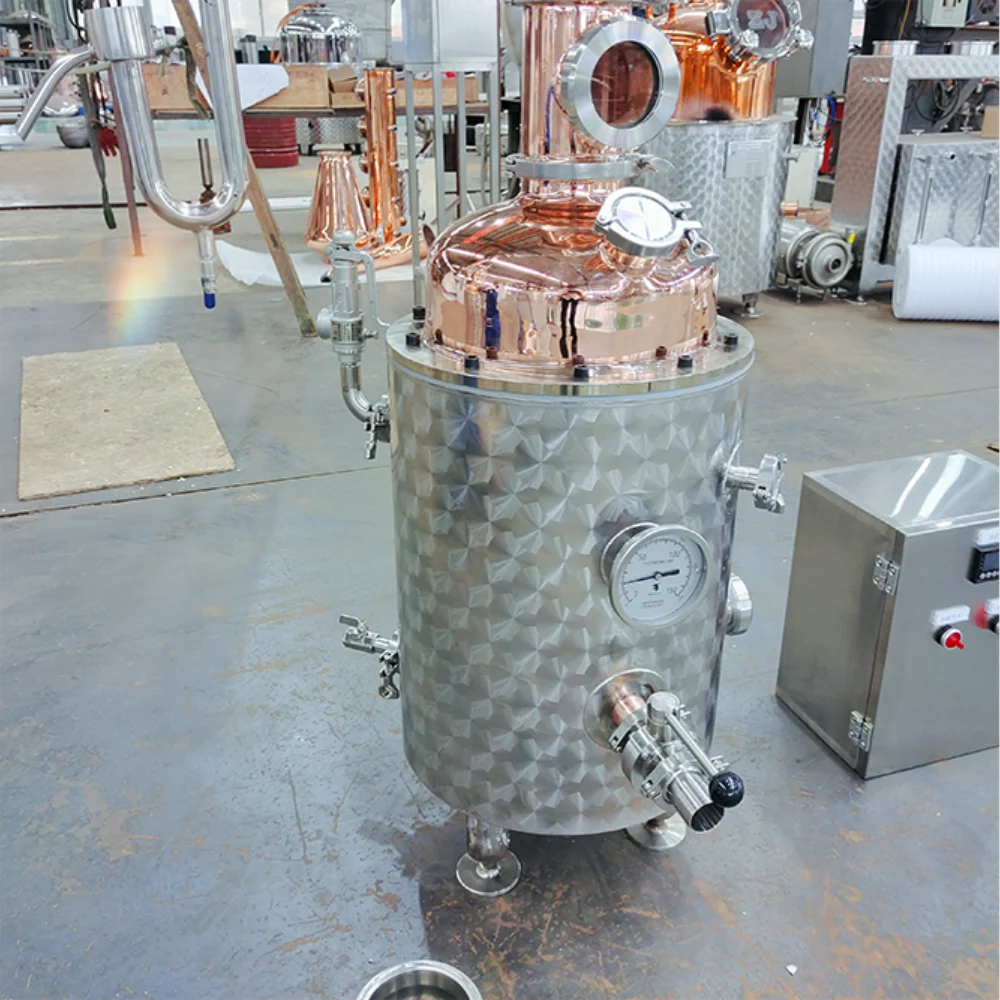

- Integrated Agitation & Jacketed Kettle: Equipped with a high-torque motor and a jacketed base for water bath or electric heating. This prevents scorching of delicate botanical or grain washes, ensuring absolute batch consistency.
Industrial Build in a Desktop Footprint

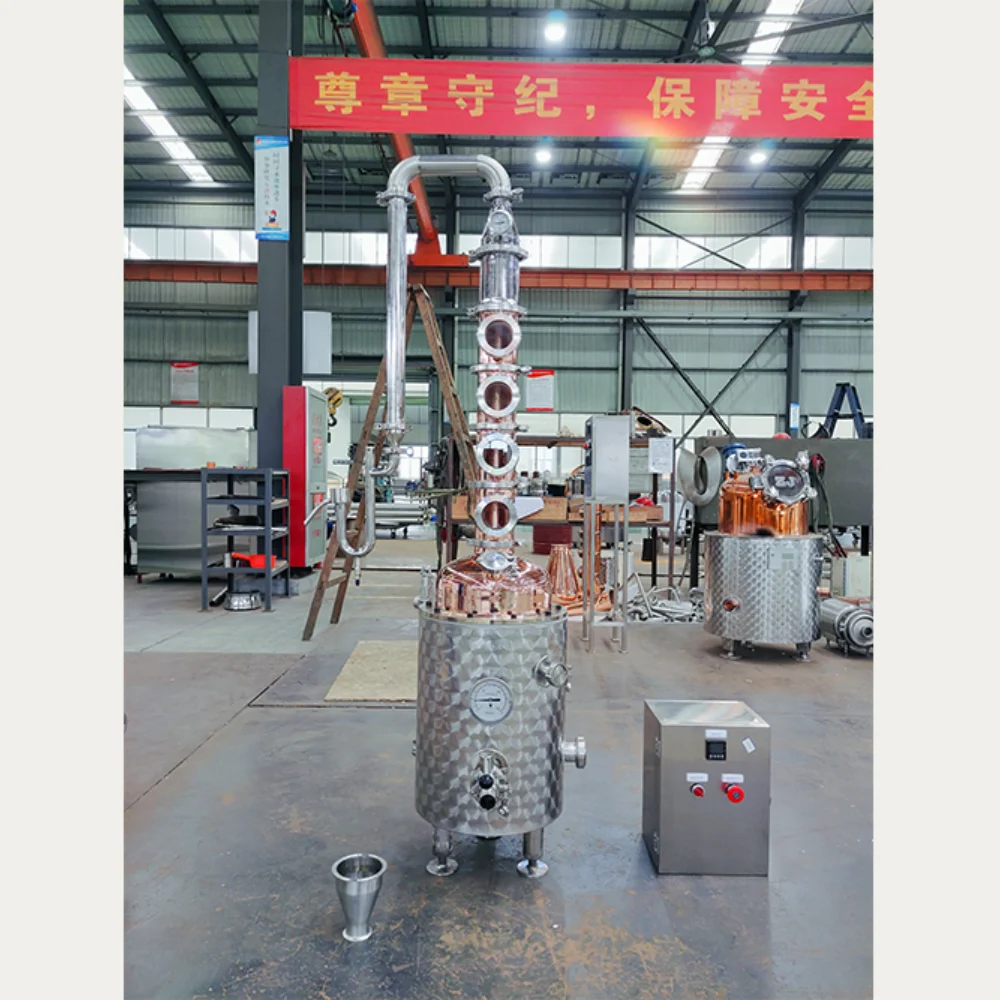

- Turnkey Skid-Mounted Architecture: The entire unit is pre-assembled on a sanitary SUS304 stainless steel frame. This "Plug-and-Play" design allows for rapid deployment in laboratories or micro-distilleries with zero on-site assembly.
- Full Process Transparency: Outfitted with high-fidelity digital temperature sensors at every stage and wide-vision glass manways, giving researchers total visual and data-driven control over the distillation curve.

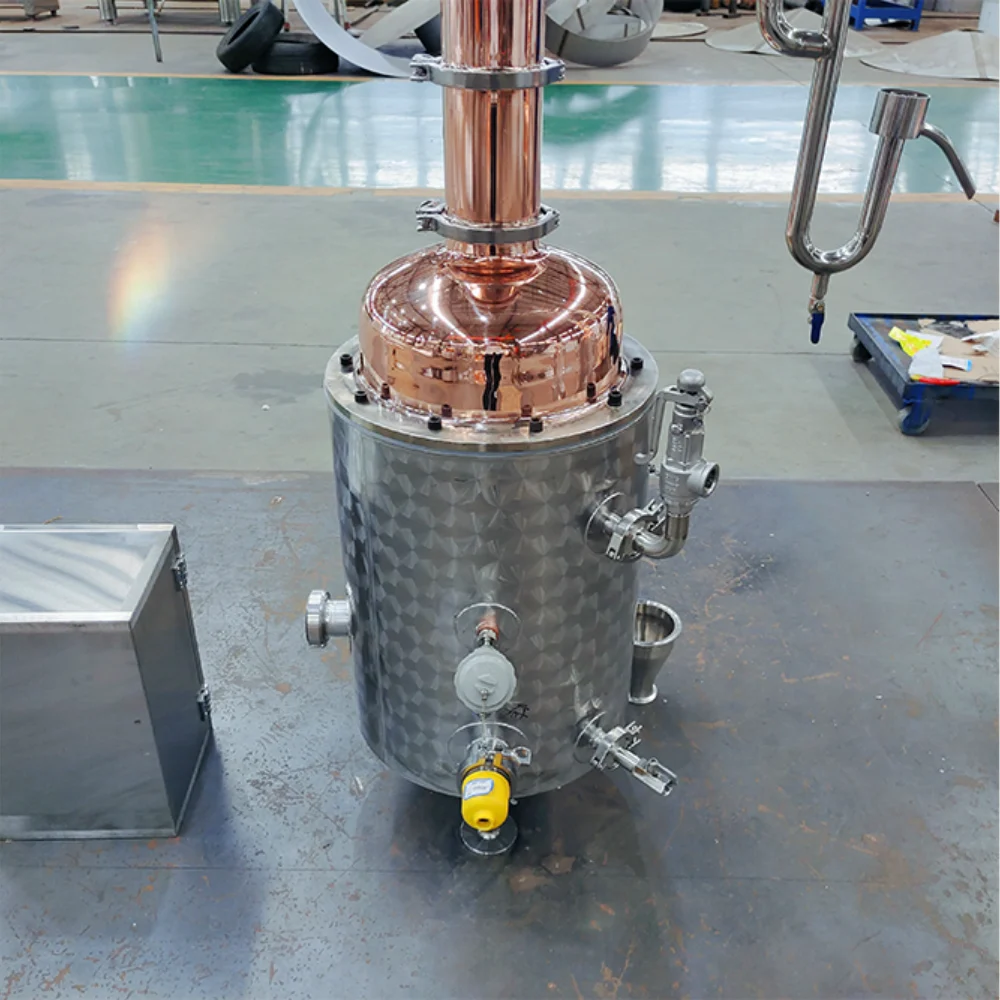

- Precision Sanitary Engineering: Every joint is expert TIG welded and mirror-polished (Ra < 0.6μm). The system is fully CIP compatible, ensuring no flavor carryover between experimental batches.
Technical Specifications
Component | Specification |
|---|---|
Model | TGD L20 II (Fractional Series) |
Batch Capacity | 20 Liters / 5.3 Gallons |
Target ABV | Up to 95%+ (Neutral Spirits) |
Material | 99.9% T2 Red Copper & SUS304 |
Build Standard | CE Certified / Food-Grade Sanitary |
Heating | Jacketed Electric / Water Bath |
💡 Standard setup includes 1-on-1 technical training and sample recipe consultations.
