TGD L100 I | 100L Craft Copper Pot Still for Small Batch Malt Whiskey & Brandy
TGD L100 I: Pro 100L copper pot still for malt whiskey. Jacketed kettle with agitator, 4-plate column & turnkey skid. 99.9% T2 copper. CE certified.
Specifications
- Model
- TGD L100 I (Professional Series)
- Capacity
- 100 Liters / 26.4 Gallons
- Heating Source
- Jacketed Electric / Steam / Oil Bath
- Material
- T2 Red Copper & SUS304
- Finish Quality
- Sanitary Mirror Polish (Ra < 0.6μm)
- Dimensions
- 850 x 800 x 1850 mm
- Included Hardware
- Agitator, Reflux Column, Condenser, Control Box
TGD L100 I | The Commercial Entry-Point for Professional Craft Distillation

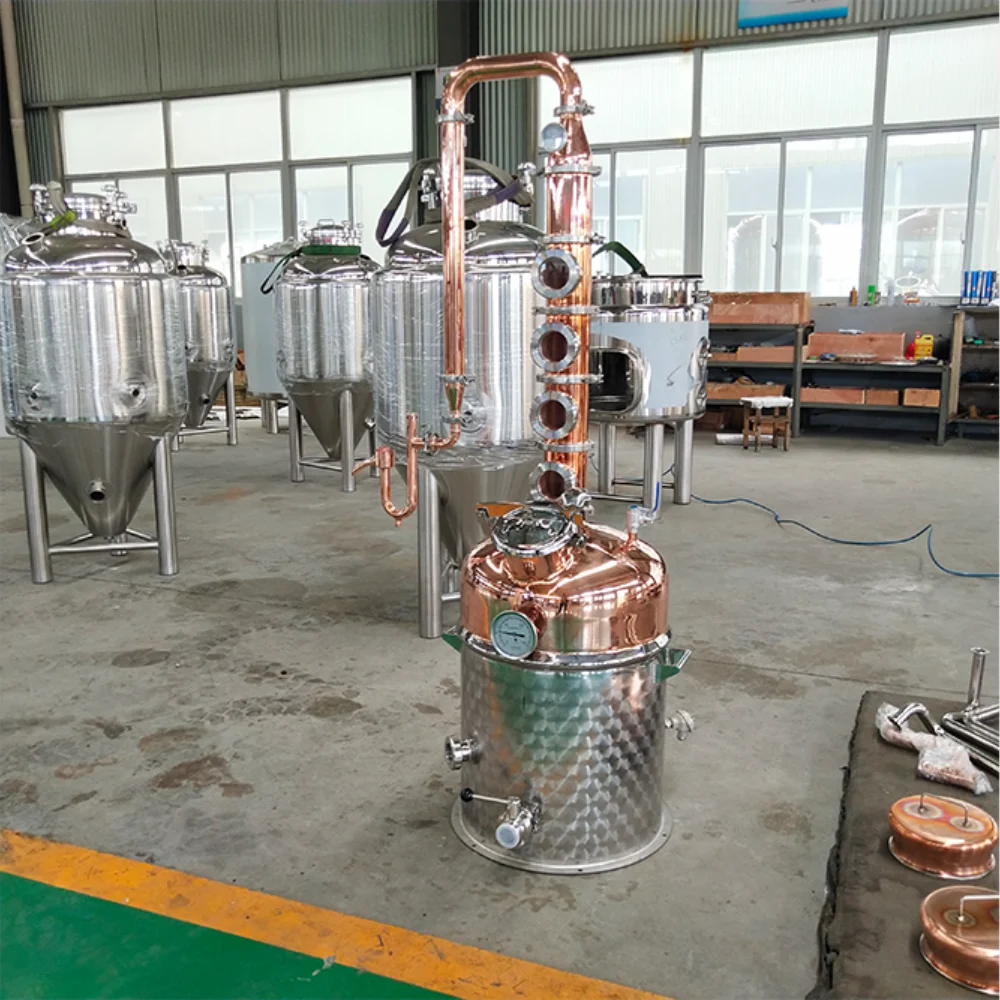

The TGD L100 I is a high-performance 100-liter (26.4 Gallon) Professional Distillation System specifically engineered for the transition from hobbyist to commercial craft producer. Combining traditional Scottish pot still geometry with modern industrial controls, this unit is the perfect workhorse for boutique distilleries, micro-breweries, and specialized R&D spirit labs.
Engineering the Spirit: Precision Copper Technology
- Catalytic T2 Red Copper: The kettle dome and distillation column internals are handcrafted from 99.9% high-purity T2 red copper. This ensures maximum catalytic sulfur removal, resulting in the refined, "soft" mouthfeel and complex ester development required for premium malt whiskeys and fruit brandies.

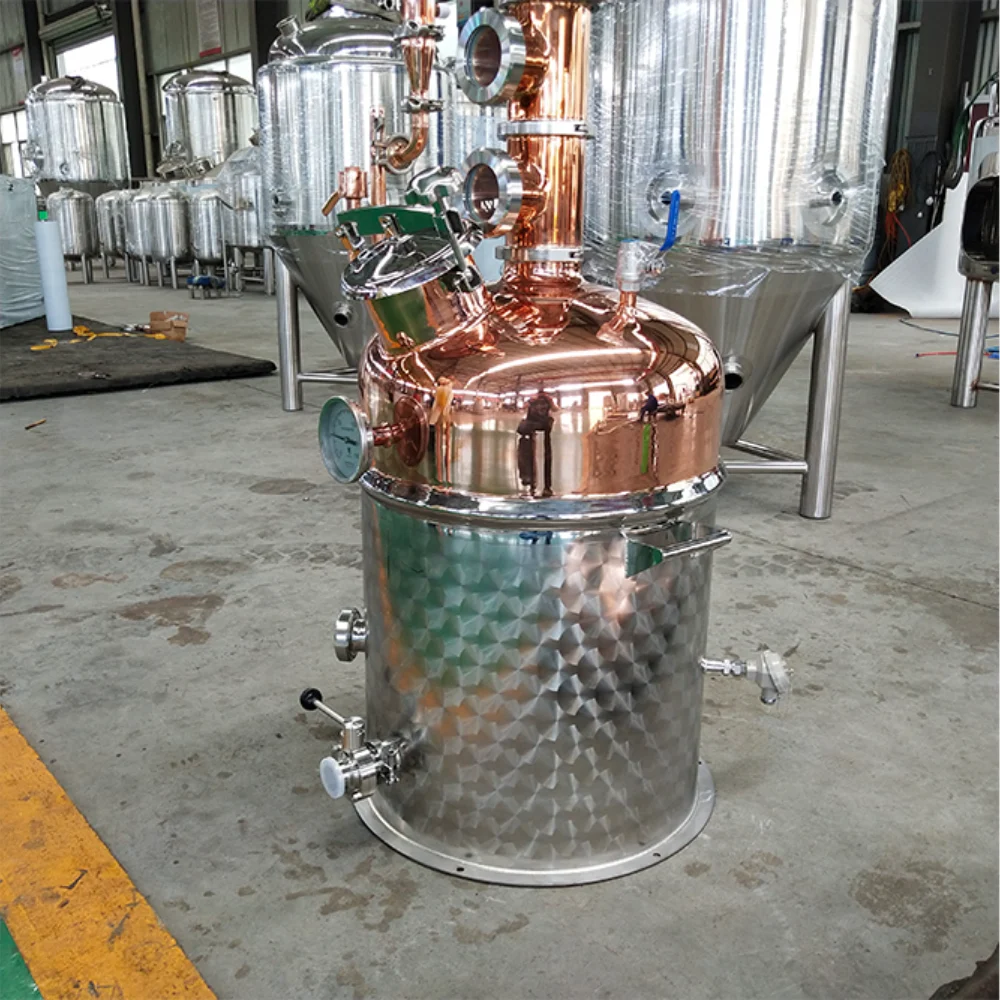

- Integrated High-Torque Agitation: Unlike basic laboratory stills, the L100 I features a heavy-duty electric agitator motor. This ensures consistent thermal distribution and prevents the scorching of thick grain mashes or fruit pomace, guaranteeing batch-to-batch consistency.

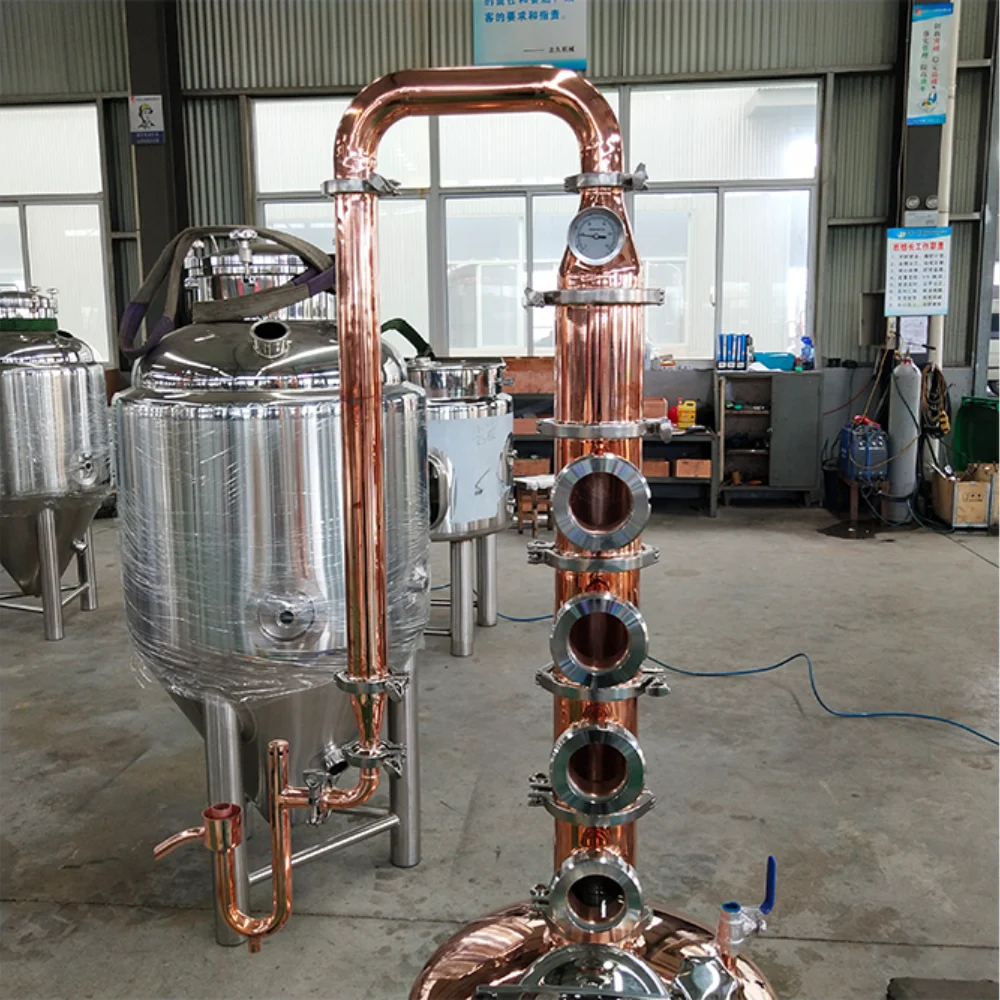

- Modular Reflux Management: Equipped with a professional 4-plate reflux column. This allows master distillers to precisely adjust the ABV and spirit character, easily switching between heavy-bodied pot still character and cleaner, lighter spirit profiles.
Industrial Build Quality & Safety Compliance
- Dual-Layer Jacketed Heating: The kettle utilizes a high-efficiency jacketed design compatible with electric or steam heating. This providing gentle, uniform heat transfer that protects the delicate botanical and grain nuances of your wash.

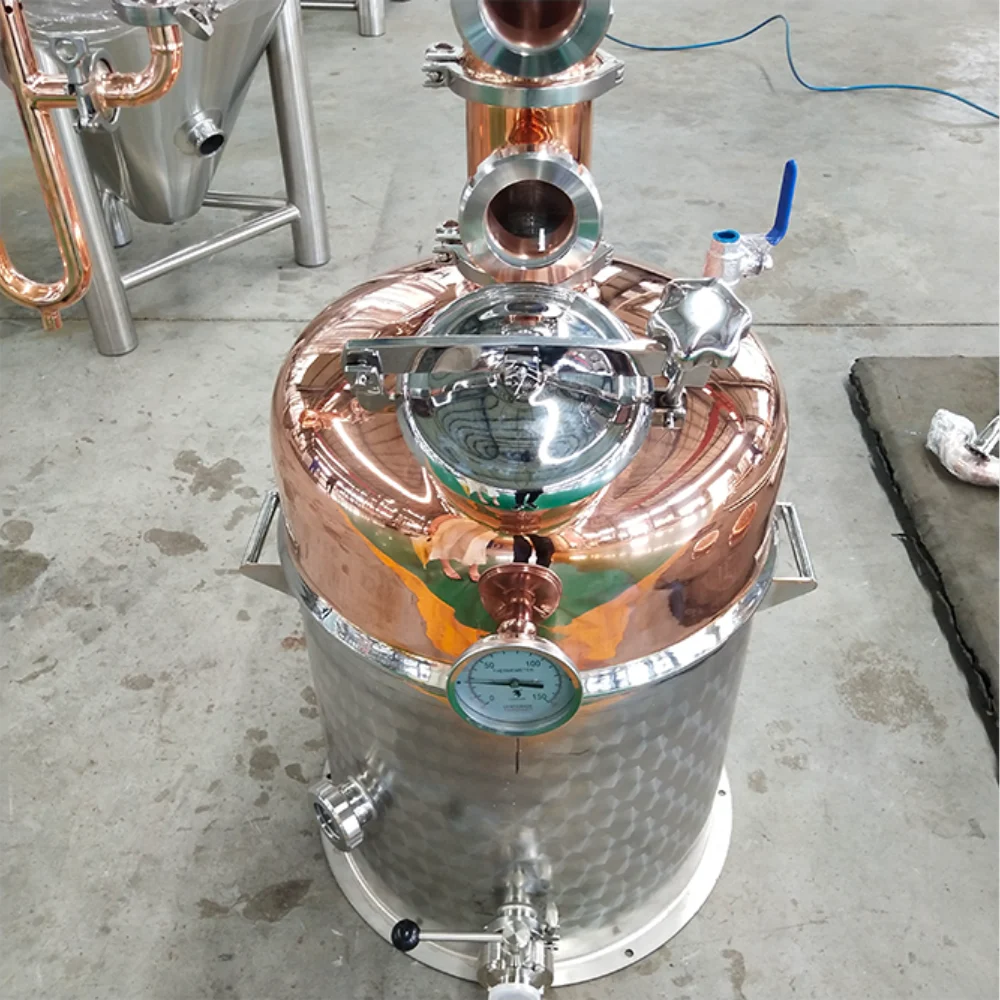

- Advanced Safety Integration: Every TGD L100 I is outfited with dual industrial-grade pressure relief valves and digital temperature monitoring at all critical vapor stages. This ensures a secure and repeatable production environment that meets international safety codes.

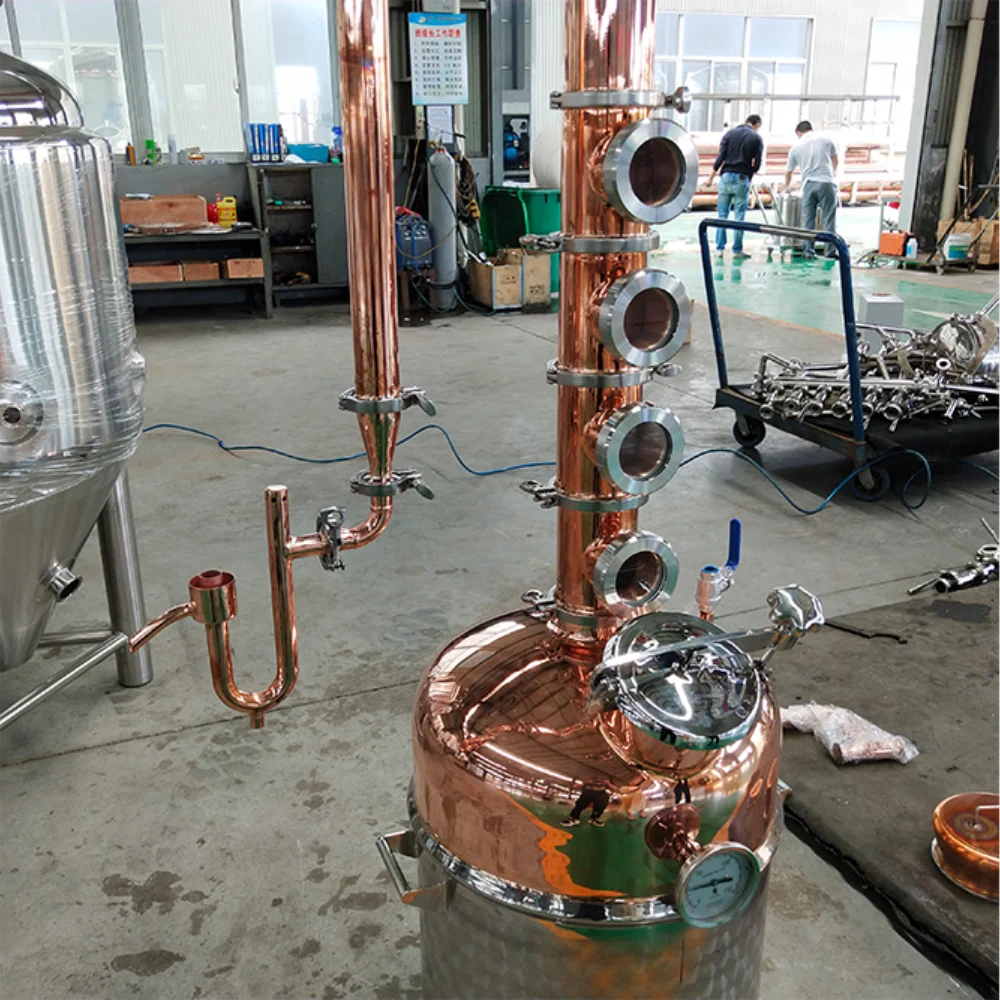

- Sanitary Turnkey Setup: Pre-mounted on a reinforced SUS304 stainless steel skid with sanitary tri-clamp connections throughout. This "Plug-and-Play" design minimizes on-site commissioning time and optimizes your distillery's operational footprint.
Technical Specifications
Component | Specification |
|---|---|
Model | TGD L100 I (Professional Series) |
Batch Capacity | 100 Liters / 26.4 Gallons |
Heating Source | Jacketed Electric / Steam / Oil Bath |
Purity Standard | 99.9% T2 Red Copper & Food-Grade SUS304 |
Finish Quality | Sanitary Mirror Polish (Ra < 0.6μm) |
Included Hardware | Agitator, Reflux Column, Condenser, Control Box |
💡Engineered for a production cycle of 4-6 hours per batch, the L100 I maximizes your facility's daily output.
