Mash Tuns & Nano-Brewhouses

TGL 100 | TengoDistill 100L Turnkey Skid‑Mounted Microbrewery System

TGL 100: Complete 100L turnkey skid‑mounted microbrewery system. Pre‑plumbed skid design, jacketed fermentation unitanks, integrated brewhouse unit, industrial chiller & PLC automatic control. CE certified commercial craft beer production line for startup breweries.

Specifications

Model: TGL 100L
Capacity: 100L per batch
Heating Source: Jacket water‑bath heating with electric immersion heaters
Material: SUS304 Stainless Steel
Fermentation: 100L Jacketed Unitanks (Qty Customizable)
Automation: Commercial Craft Beer Brewing
Certification: CE Certified

TGL 100 | The Commercial Benchmark for Professional Microbreweries

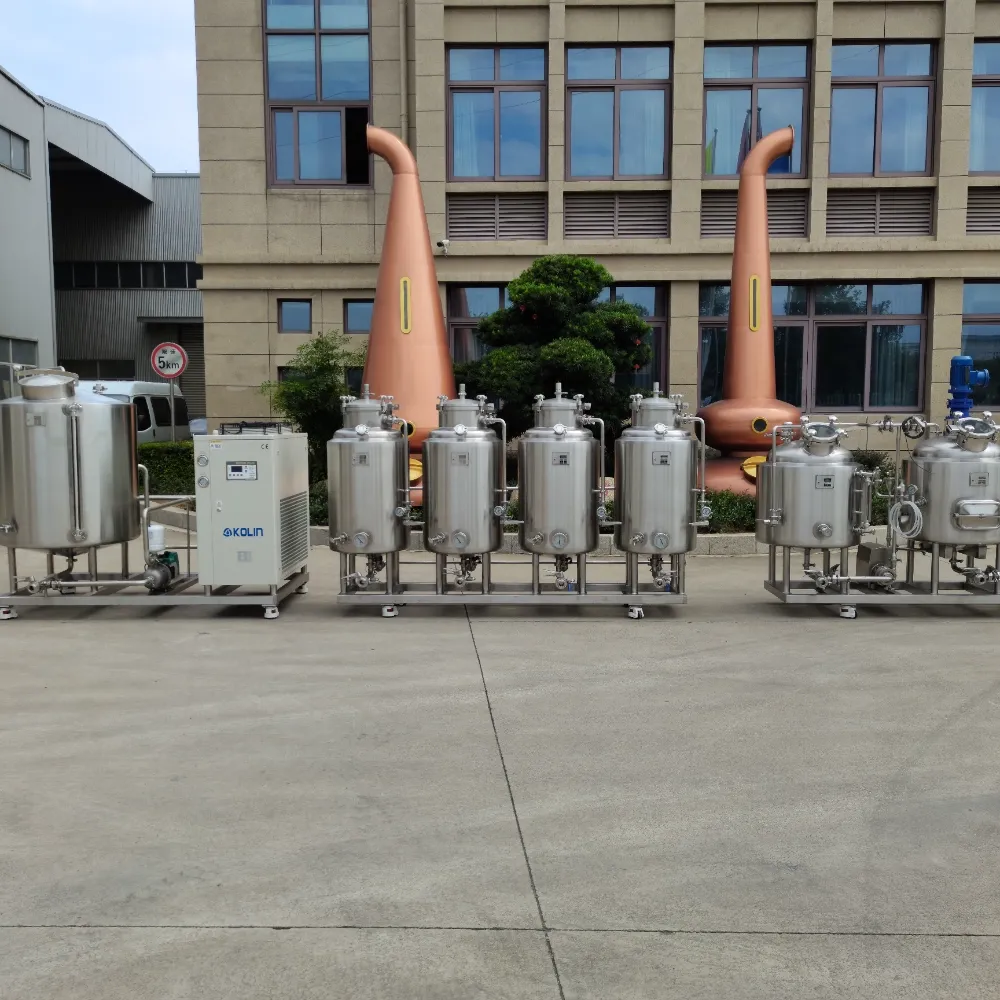

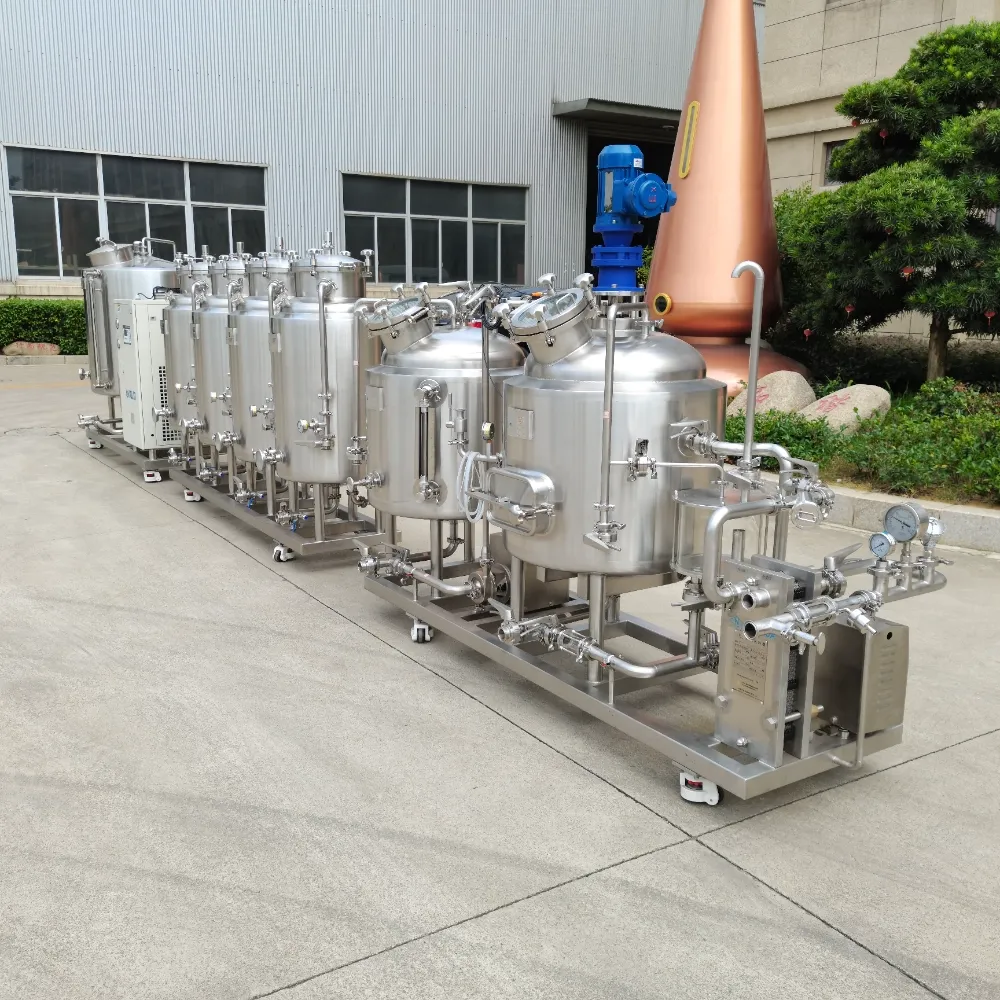

The TGL 100 is our flagship 100‑liter turnkey skid‑mounted brewing system, purpose‑built for craft beer entrepreneurs and professional brewers expanding commercial production. This pre‑plumbed modular production line integrates brewhouse unit, jacketed fermentation unitanks and standalone industrial chiller skid. It delivers reliable batch‑to‑batch beer output while saving your workshop floor space and lowering overall installation cost for maximum ROI.

High‑Performance Brewhouse Engineering

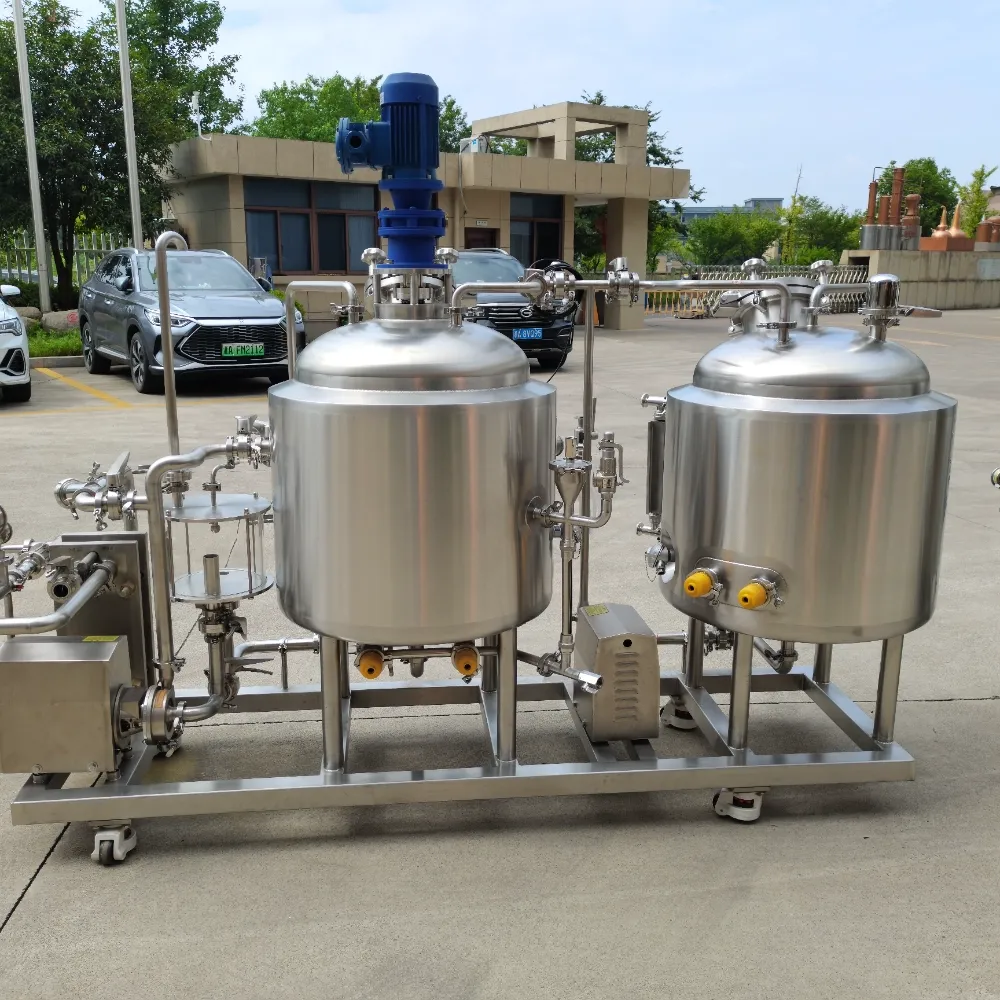

Two‑Vessel Brewhouse Layout: Equipped with precision‑engineered Mash/Lauter Tun and Kettle/Whirlpool combined unit. Optimized for high‑gravity brewing, maximizes wort extract yield and guarantees consistent brewing results batch after batch.

Dimple‑Jacketed Heating Option: High‑efficiency dimple jacket design supports steam heating or electric immersion heater water‑bath heating. Achieves uniform boiling and precise temperature control, well preserving delicate hop aroma and malt flavour profiles.

Sanitary Central Manifold Piping: Centralized valve manifold with tri‑clamp sanitary connections. Realizes smooth wort and beer transfer between vessels, reduces oxidation risk and cuts manual labor work.

Skid‑Mounted Fermentation & Cooling Module

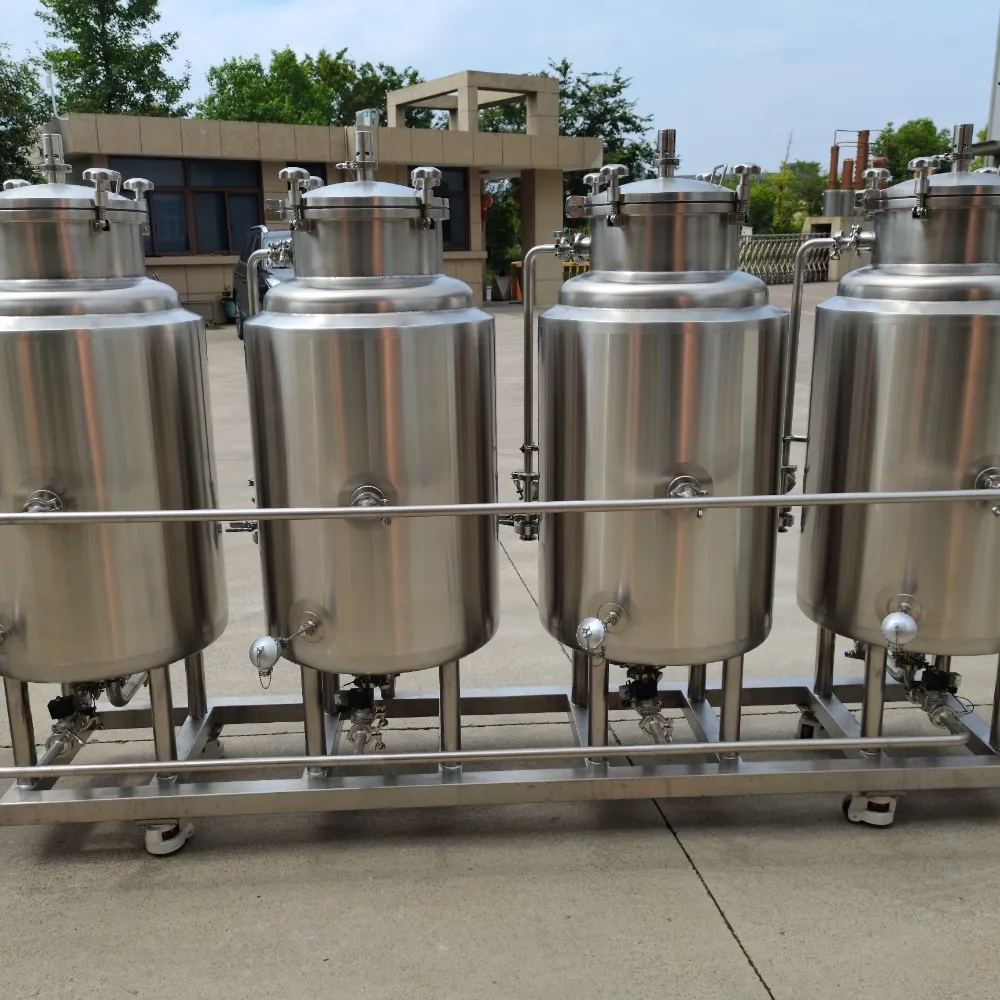

Multiple Jacketed Unitanks: 4 sets of 100L dimple‑jacketed fermentation tanks, fully pre‑assembled on one shared skid base. Each tank fitted with PT100 temperature sensor, pressure gauge and CIP cleaning ports for independent fermentation temperature & pressure management.

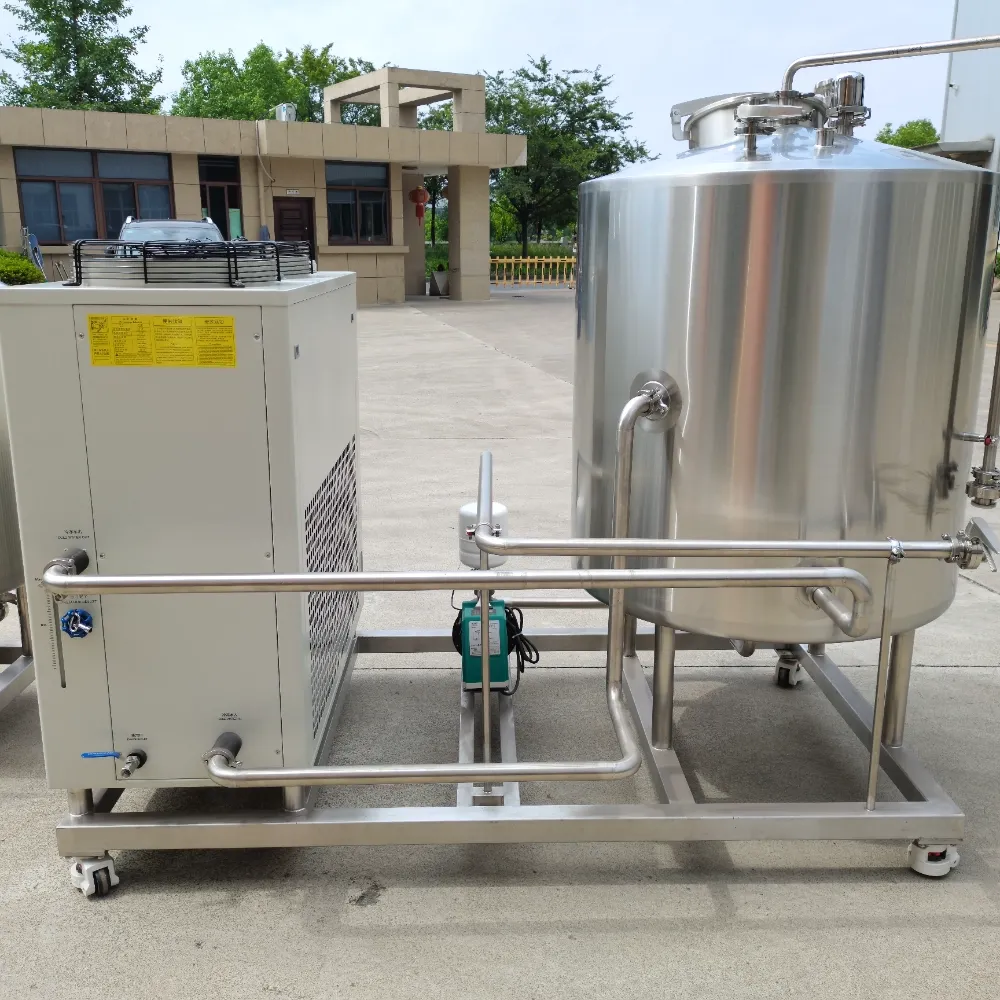

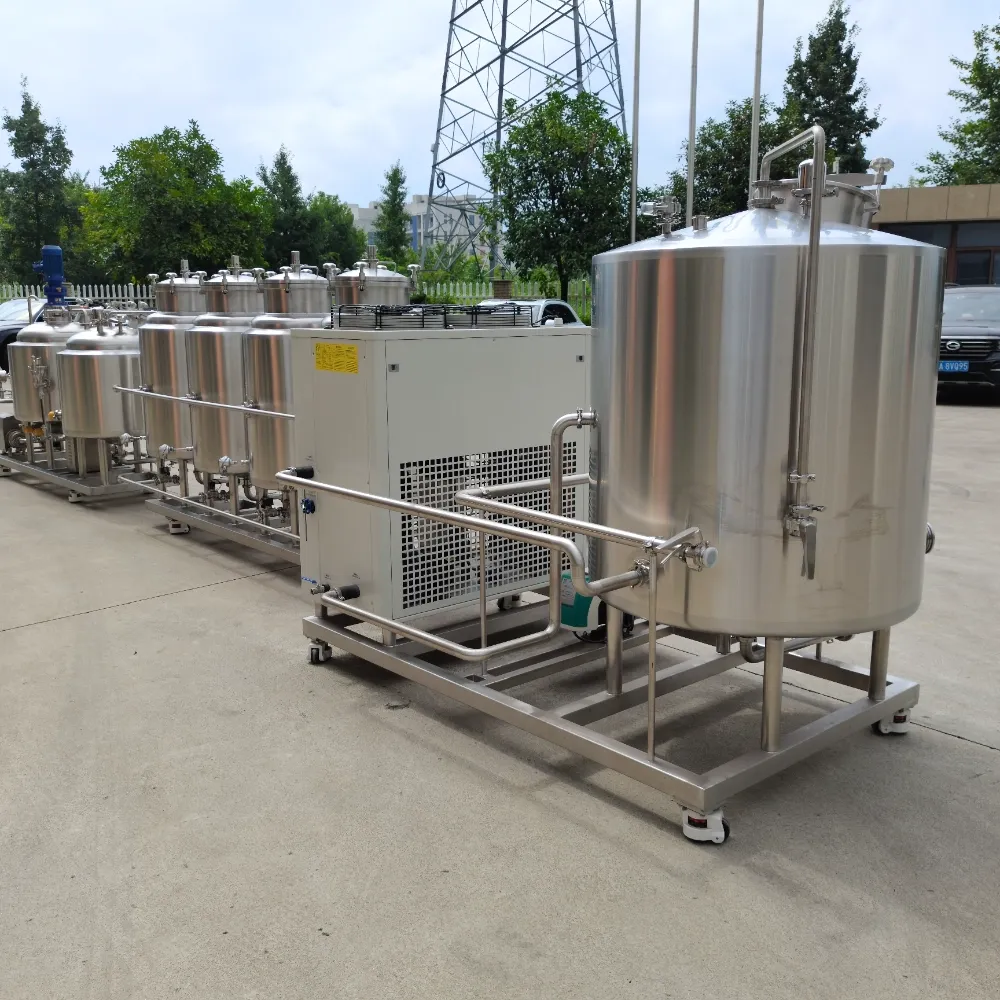

Independent Industrial Chiller Skid: Complete cooling skid includes stainless‑steel cold‑water tank, industrial chiller and circulation pump. Ready‑to‑connect for supplying chilled water to all unitanks, stable temperature control for ale and lager fermentation.

Plug‑and‑Play Installation: All tanks, pumps, valves and piping are pre‑mounted on heavy‑duty skids with moving casters. Minimizes on‑site assembly work, shortens your commissioning timeline.

Built‑for‑Production Sanitation & Control

Full 304 stainless‑steel wetted parts, tri‑clamp connections throughout for easy CIP cleaning.

PLC automatic control system, intuitive touch‑screen operation for brewing & fermentation parameter monitoring.

CE certified commercial‑grade construction, designed for long‑hours continuous craft brewery operation.

Technical Specifications

Component	Specification
Model	TGL 100
Batch Capacity	100 Liters
Heating Source	Jacketed Steam / Multi-Stage Electric
Material	Food-Grade SUS304 Stainless Steel
Fermentation	100L Jacketed Unitanks (Qty Customizable)
Automation	Centralized Digital Temp & Flow Control
Certifications	CE / UL Components / ISO 9001
