TGD WM10T+7T | TengoDistill Industrial 10000L & 7000L Malt Whiskey Pot Still System
TGD WM10T+7T: Industrial 10,000L & 7,000L malt whiskey pot still system. Traditional copper design for wash & spirit distillation. Scale up now.
Specifications
- Model
- TGD WM10T+7T (Industrial Series)
- Capacity
- 10,000L (Wash) / 7,000L (Spirit)
- Condenser Type
- Traditional Copper Worm Coil
- Primary Material
- T2 Red Copper / SUS304
- Column Structure
- Traditional Onion Head / Swan Neck
- Heating Method
- Industrial Jacketed Steam System
TGD WM10T+7T | The Flagship Industrial Solution for Malt Whiskey Distillation

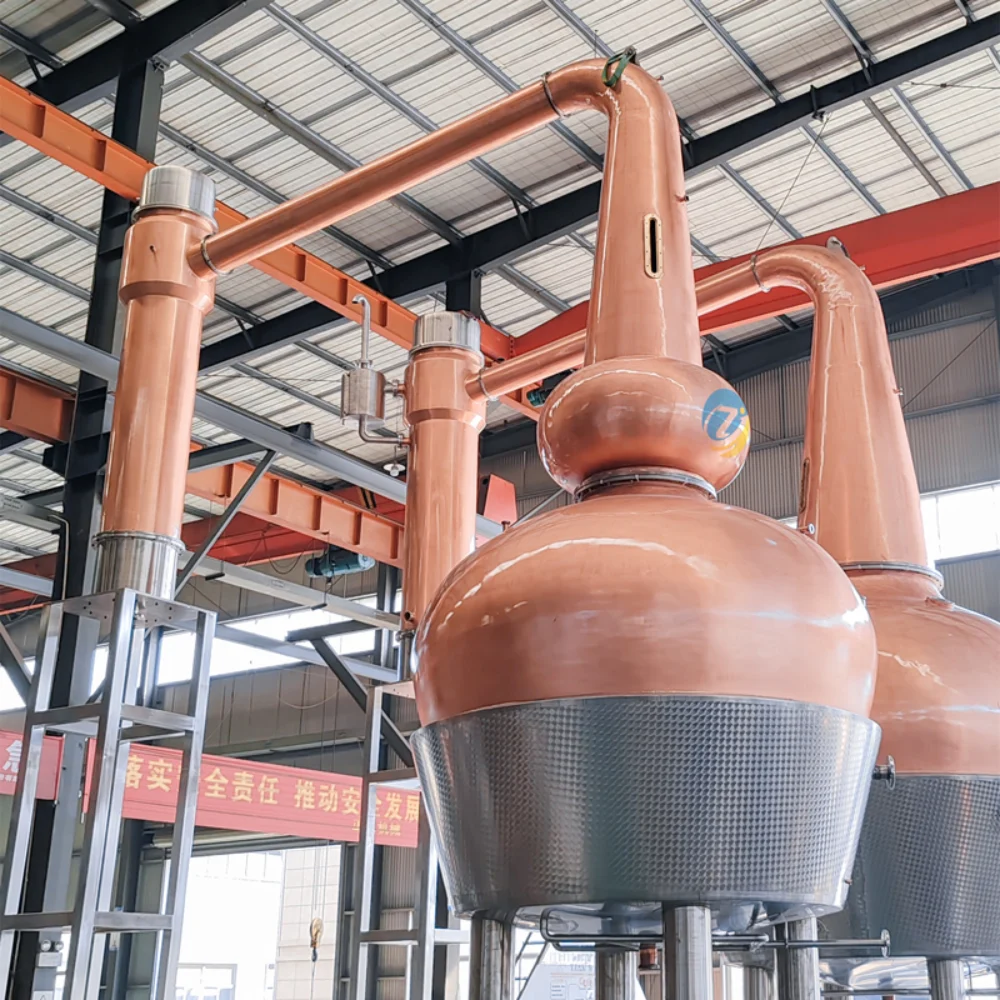

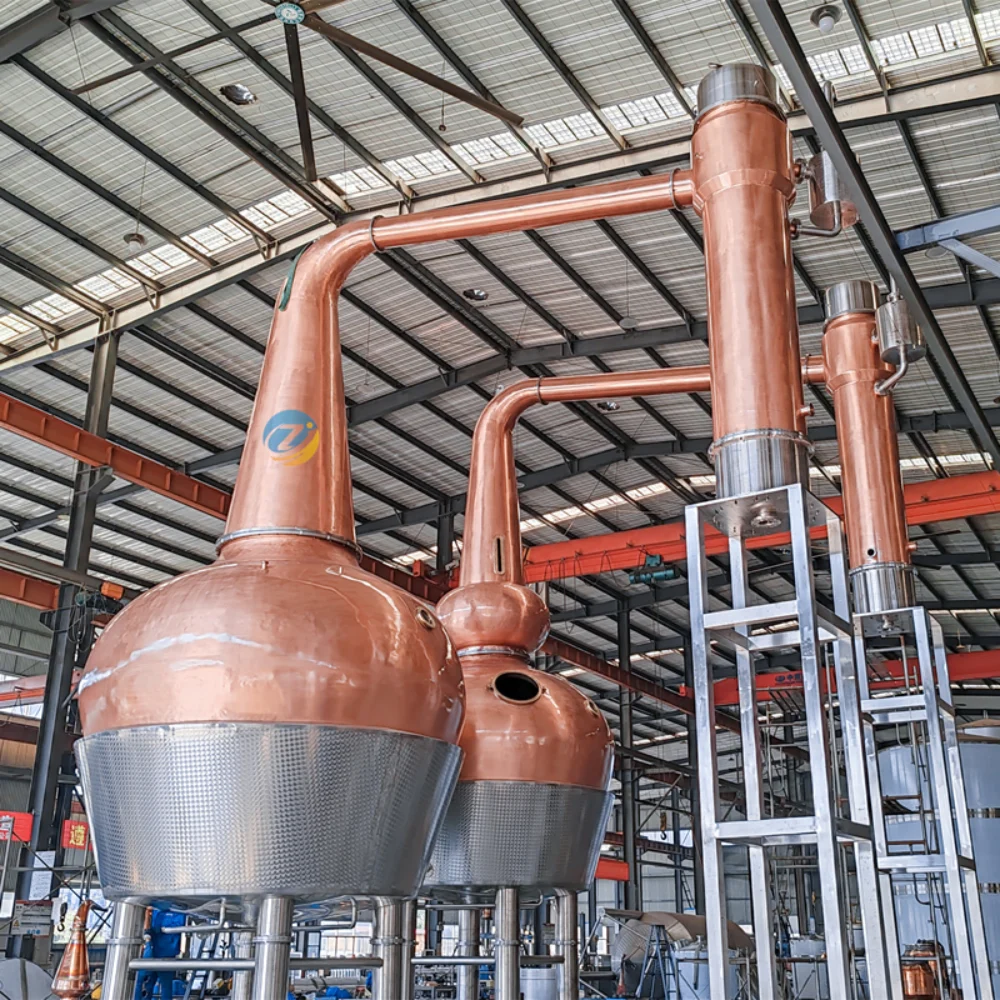

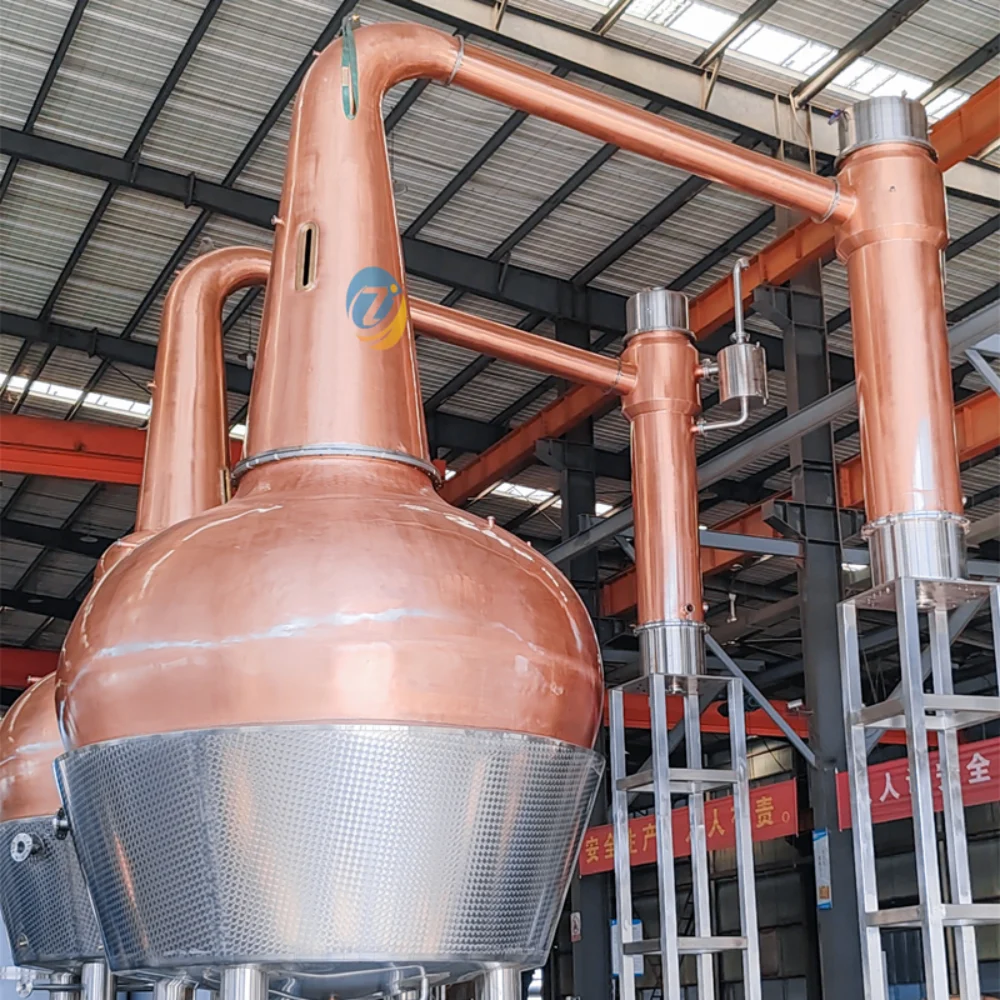

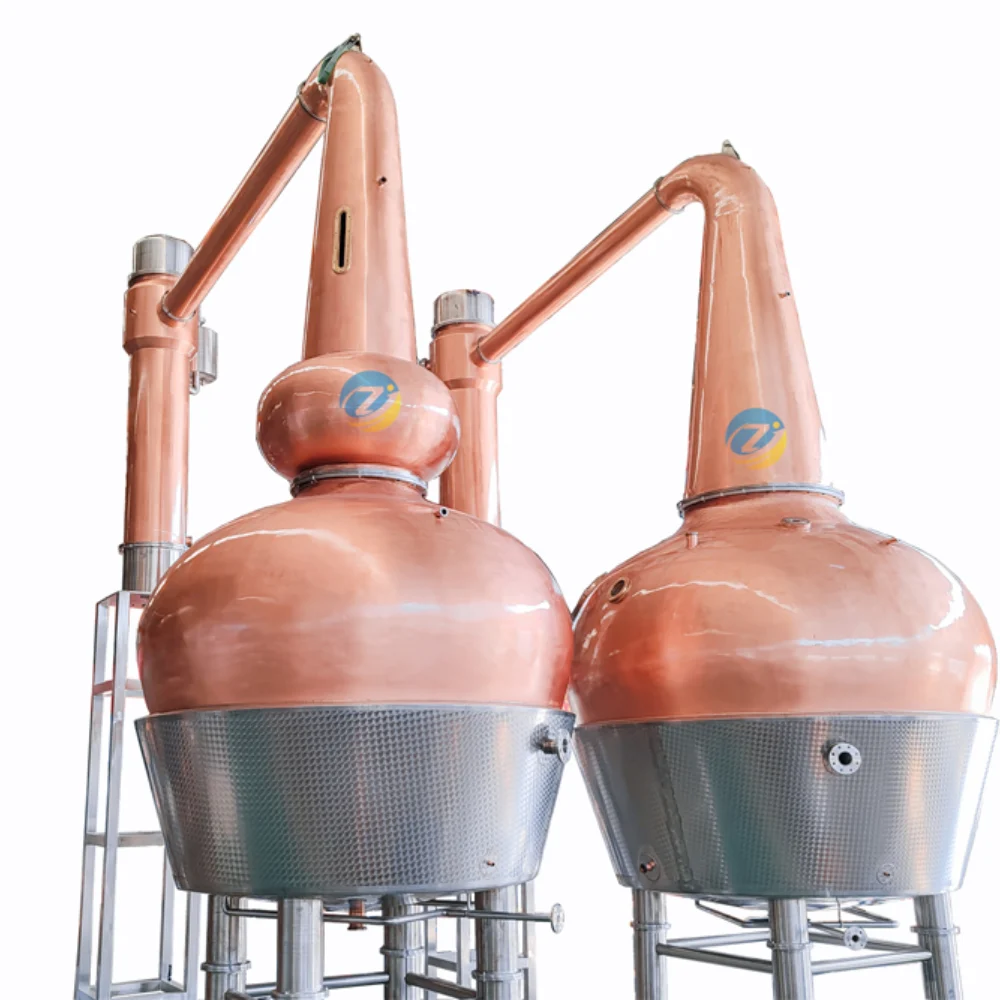

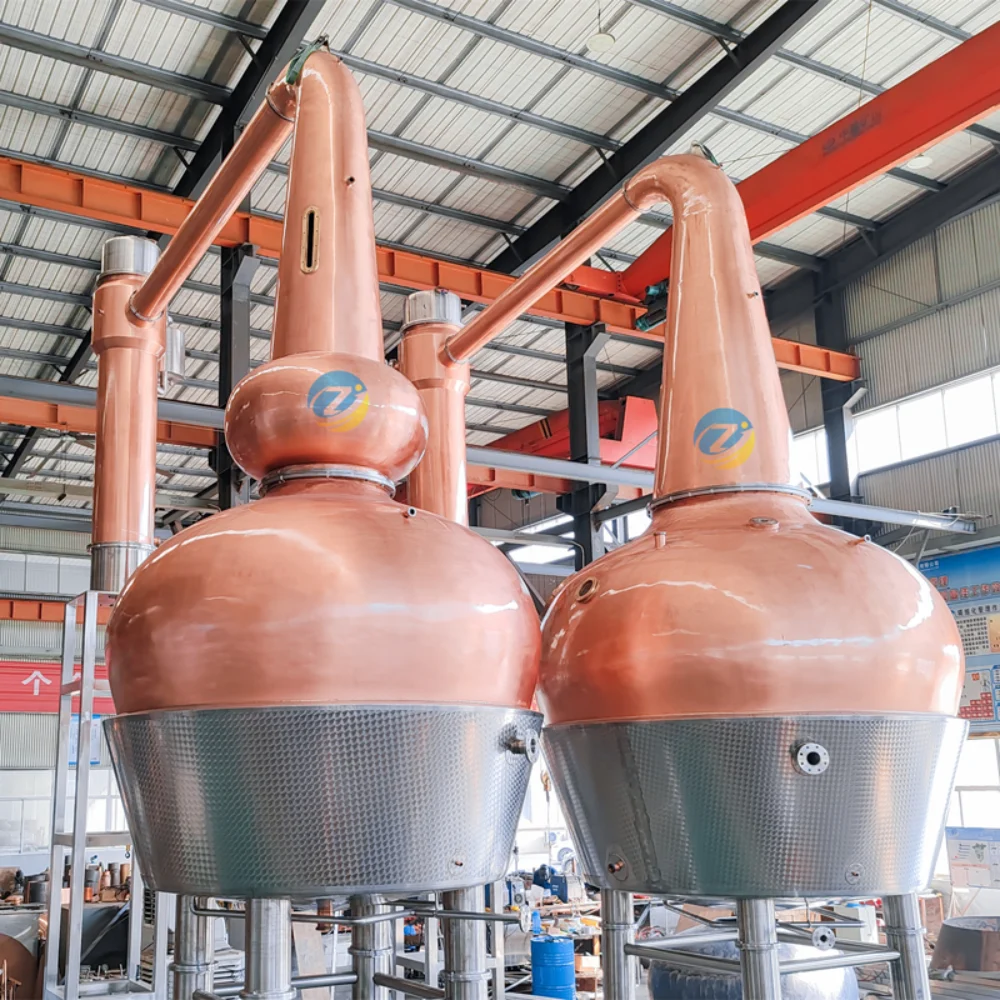

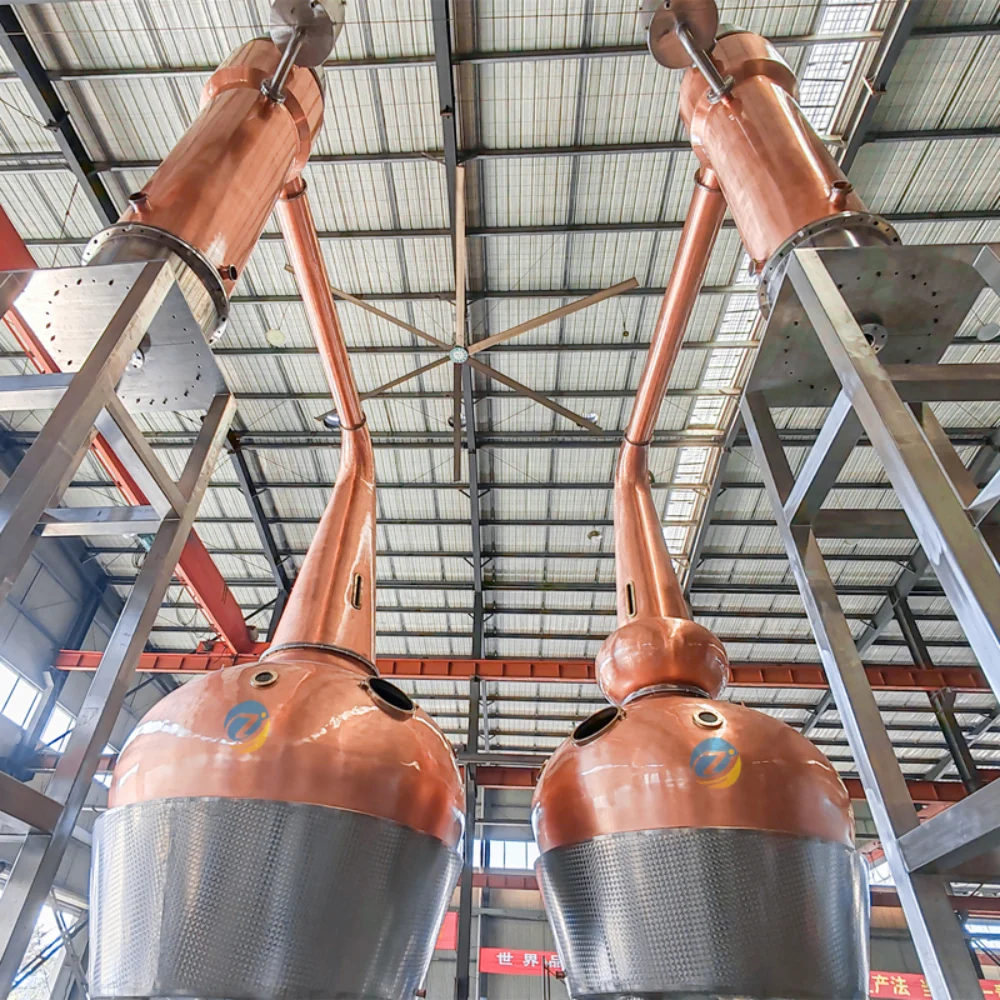

The TGD WM10T+7T represents the pinnacle of large-scale artisanal engineering. Specifically designed for high-volume Single Malt Whiskey production, this paired system replicates the time-honored Scottish double-distillation method. Featuring a 10,000-liter Wash Still and a 7,000-liter Spirit Still, it offers the perfect balance of massive catalytic surface area and industrial-grade throughput for global commercial distilleries.
Engineering the Spirit: Traditional Double Distillation
- Wash & Spirit Still Pairing: The TGD WM10T (10,000L) is optimized as the primary Wash Still, while the TGD WM7T (7,000L) serves as the secondary Spirit Still. This tiered capacity is engineered to handle the volume reduction typical in traditional double-run processes, ensuring maximum efficiency.
- Superior T2 Red Copper Catalysis: Both units are meticulously handcrafted from 99.9% high-purity T2 red copper. This provides an immense surface area for removing harsh sulfur compounds, essential for developing the complex esters and "soft" mouthfeel required for premium aged whiskeys.
- Optimized Lyne Arm Geometry: The angle and length of the Lyne arms are precision-engineered to control vapor reflux and character, allowing for the consistent production of either light, floral spirits or heavy, oily whiskeys depending on your house style.
Built for Industrial Rigor & Long-Term ROI
- Advanced Jacketed Steam Heating: Engineered for rapid and uniform heat transfer, our jacketed kettle design prevents scorching of large-volume mashes and significantly reduces energy consumption per gallon.
- Reinforced Structural Engineering: Every unit is mounted on heavy-duty, sanitary SUS304 stainless steel supports. The system is designed to meet international load-bearing and safety standards for high-capacity industrial environments.
- Centralized Digital Automation: Outfitted with an industrial-grade control suite and digital temperature monitoring at every critical stage, providing master distillers with total process transparency and absolute repeatability.
Technical Specifications
Component | Specification |
|---|---|
Model | TGD WM10T+7T (Industrial Series) |
Kettle Capacities | 10,000L (Wash) / 7,000L (Spirit) |
Primary Material | 99.9% T2 Red Copper |
Heating Method | Industrial Jacketed Steam System |
Column Structure | Traditional Onion Head / Swan Neck |
Compliance | CE Certified / Food-Grade Sanitary |
💡Customized 3D piping design and on-site engineering consultancy are available for our 10T+ series.
