TGD V300 II | TengoDistill 300L High-Purity Vodka Column Still & Fractional Distillation System
TGD V300 II: High-purity 300L vodka still. Dual fractional columns for 95% ABV neutral spirits. Modular, turnkey & CE certified. Buy now.
Specifications
- Model
- TGD V300 II (Fractional Series)
- Capacity
- 300 Liters / 80 Gallons
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Target ABV
- 95%+ (Neutral Spirits)
- Configuration
- Dual Tower / Jacketed Kettle / Agitator
- Compliance
- CE Certified / Food-Grade Sanitary
TGD V300 II | Advanced Fractional Technology for Ultra-Pure Spirits

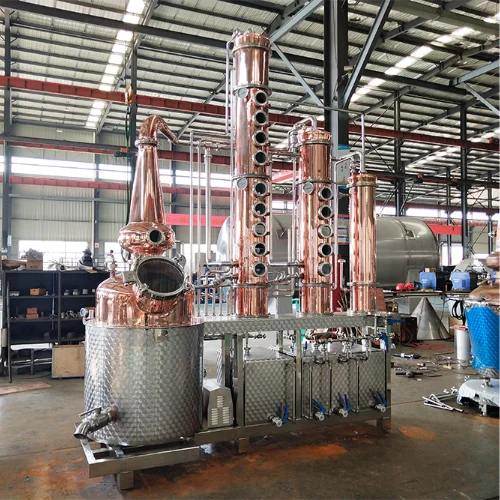

The TGD V300 IIis a high-capacity 300-liter (80 Gallon) Fractional Distillation Systemengineered for the professional craft distillery. This "Series II" configuration features a sophisticated dual-column architecture designed to reach 95%+ ABV in a single pass, providing the ultimate solution for premium Vodka, high-proof Gin base, and ultra-clean neutral spirits.
The Fractional Advantage: Engineering the Purest Hearts

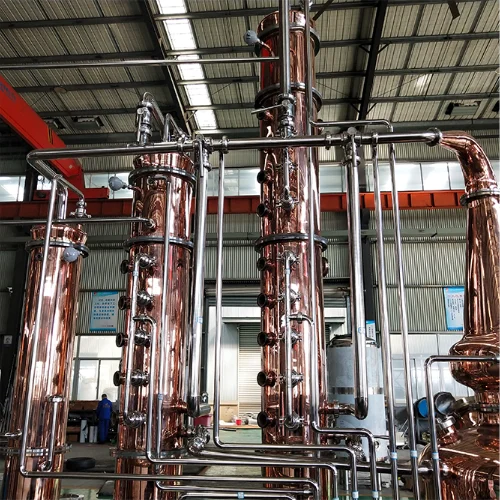

- Dual-Tower Reflux System:The V300 II utilizes twin fractional columns with multiple bubble plates. This extended vapor path ensures maximum separation of congeners, stripping away all impurities to deliver a crystal-clear, neutral spirit of exceptional quality.
- Artisanal T2 Red Copper Catalysis:The entire vapor path—from the kettle dome to the internal trays—is crafted from 99.9% T2 red copper. This provides the necessary catalytic surface area to neutralize sulfur compounds, ensuring the smooth, elegant mouthfeel characteristic of world-class spirits.

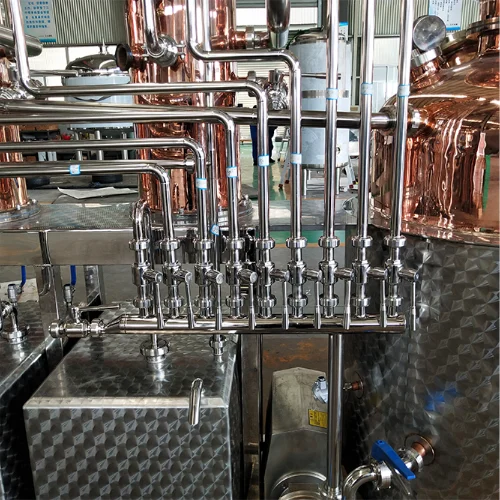

- Sophisticated Valve Control:Unlike standard stills, the V300 II features a centralized sanitary piping network with precision ball valves. This allows distillers to bypass or engage specific columns, offering total control over the distillation profile.
Commercial Integrity & Turnkey Efficiency

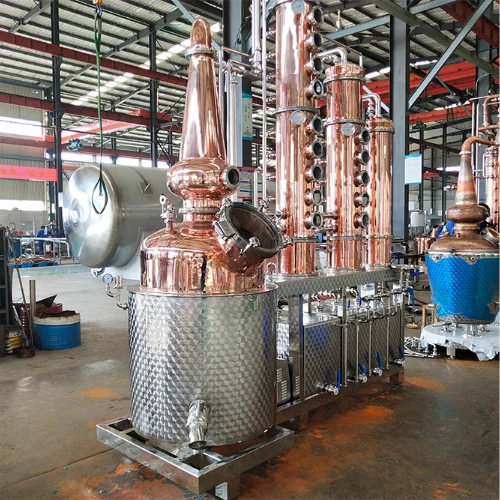

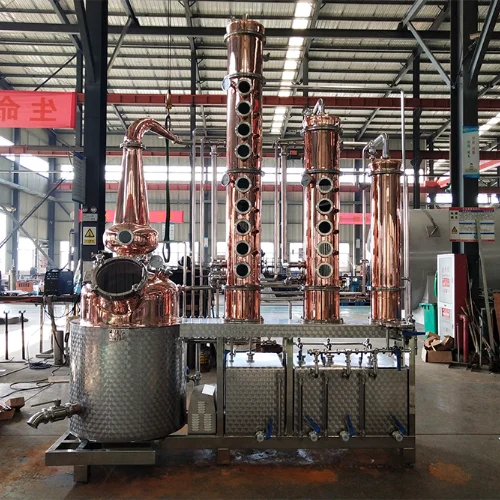

- Sanitary Skid-Mounted Design:Pre-assembled on a reinforced SUS304 stainless steel skid. This "Plug-and-Play"design ensures a compact footprint and minimizes on-site installation time and labor costs.

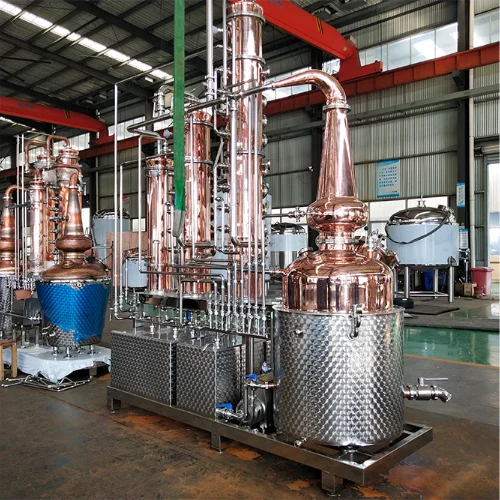

- Integrated Agitation System:Equipped with a high-torque industrial motor and a jacketed kettle base (Steam/Electric compatible). This ensures uniform heating of the wash, preventing scorching and ensuring batch-to-batch consistency.
- Full Process Transparency:Outfitted with digital temperature monitoring at every stage and industrial-grade glass manways, giving master distillers real-time visual and data-driven control.
Technical Specifications
Component | Specification |
Model | TGD V300 II (Fractional Series) |
Batch Capacity | 300 Liters / 80 Gallons |
Target ABV | 95%+ (Neutral Spirits) |
Material | 99.9% T2 Red Copper & SUS304 |
Configuration | Dual Tower / Jacketed Kettle / Agitator |
Certifications | CE Certified / Sanitary Grade |
