TGD V200 | TengoDistill 200L High-Purity Vodka Column Still & Fractional Distiller
TGD V150: High-purity 150L vodka column still. Multi-stage reflux system for 95% ABV neutral spirits. Modular, turnkey & CE certified.
Specifications
- Model
- TGD V200 (High-Purity Series)
- Capacity
- 200 Liters / 53 Gallons
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Max ABV Output
- Up to 95% (Neutral Spirits)
- Standard Setup
- Jacketed Kettle, Agitator, Multi-stage Columns

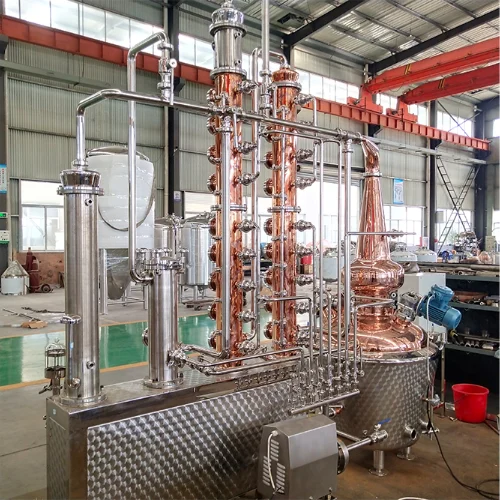

TGD V200 | Industrial Precision for High-Purity Neutral Spirits
The TGD V200is a flagship 200-liter (53 Gallon) Fractional Distillation Systemengineered for commercial craft distilleries that prioritize extreme purity and efficiency. Specifically designed for high-ABV production, this multi-column powerhouse allows you to reach 95% ABV in a single pass, making it the ultimate tool for premium Vodka, Gin base, and high-proof neutral spirits.
The Science of Purity: Advanced Fractional Technology

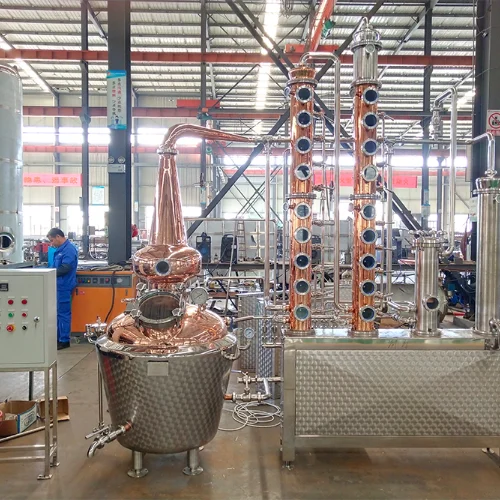

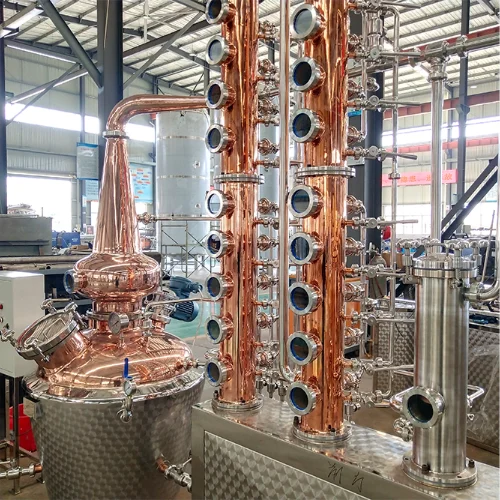

- High-Reflux Multi-Column Setup:The TGD V200 features an extended series of reflux columns with multiple bubble plates. This fractional distillation process ensures maximum separation of alcohols, stripping away all impurities to deliver an ultra-clean, crystal-clear final spirit.

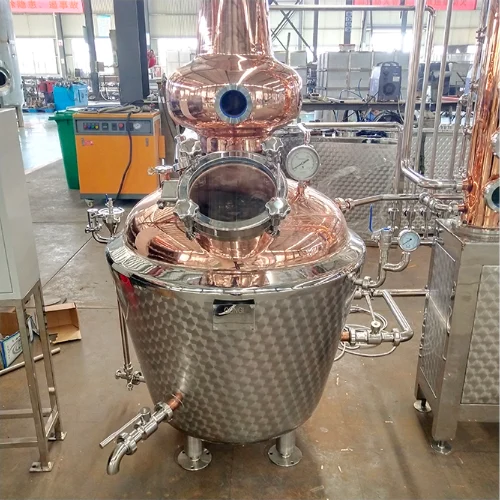

- Premium T2 Red Copper Catalysis:The entire vapor path—including the kettle dome and the internal bubble trays—is crafted from 99.9% T2 red copper. This provides the massive surface area required for catalytic sulfur removal, ensuring the "soft" and elegant mouthfeel characteristic of top-shelf vodkas.
- Integrated Industrial Agitation:Equipped with a high-torque motor to ensure uniform heating of the wash. This is critical for preventing hot spots and ensuring a consistent vapor flow through the tall columns.
Commercial Engineering & Operational Excellence

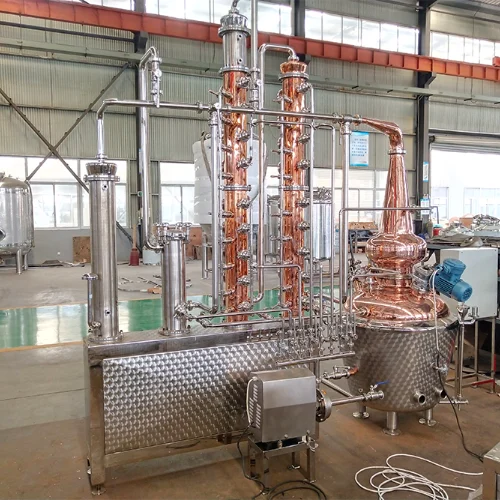

- Turnkey Skid-Mounted Architecture:Pre-assembled on a heavy-duty SUS304 stainless steel frame. This "Plug-and-Play"design ensures a small footprint and drastically reduces on-site setup costs and time.
- Advanced Thermal Control:Features specialized dephlegmators and high-efficiency shell-and-tube condensers, allowing master distillers to fine-tune the reflux ratio with absolute precision.
- Full Process Transparency:Every stage of the fractional column is equipped with digital temperature monitoring and high-pressure glass manways for real-time visual control of the distillation curve.
Technical Specifications
Component | Specification |
Model | TGD V200 (High-Purity Series) |
Batch Capacity | 200 Liters / 53 Gallons |
Maximum ABV | Up to 95%+ (Neutral Spirit) |
Material | T2 Red Copper & SUS304 |
Standard Setup | Jacketed Kettle, Agitator, Multi-stage Columns |
Certification | CE Certified / Food-Grade Sanitary |
