Gin & Vodka Column Stills
TGD V150 | TengoDistill 150L High-Purity Vodka Column Still & Neutral Spirit Distiller
TGD V150: High-purity 150L vodka column still. Multi-stage reflux system for 95% ABV neutral spirits. Modular, turnkey & CE certified.
Specifications
- Model
- TGD V150 (High-Purity Series)
- Capacity
- 150 Liters / 40 Gallons
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Max ABV Output
- Up to 95% (Neutral Spirits)
- Standard Inclusions
- Agitator, Multi-stage Columns, Gin Basket
TGD V150 | The Precision Engineering for High-Purity Spirit Production

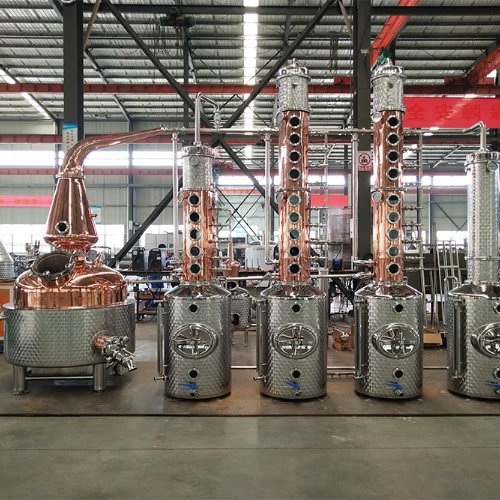

The TGD V150 is a professional-grade 150-liter (40 Gallon) Column Distillation System specifically engineered for distillers focusing on high-purity neutral spirits. Whether you are producing premium Vodka, London Dry Gin, or a clean base for liqueurs, this multi-stage system provides the precision and reflux control necessary to achieve up to 95% ABV in a single efficient run.
The Column Advantage: Reaching 95% ABV with Ease

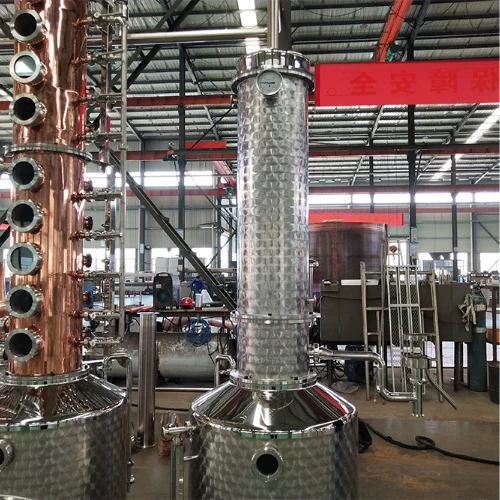

- High-Efficiency Fractional Columns:The TGD V150 features an extended multi-plate reflux column architecture. This design maximizes the contact between vapor and liquid, allowing for the precise separation of "heads" and "tails" and ensuring a crystal-clear, ultra-pure final heart.

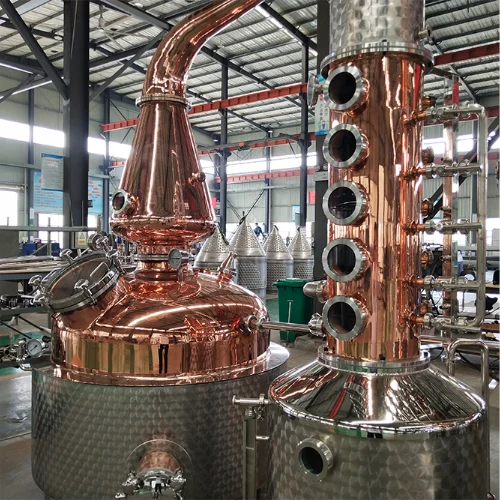

- Artisanal T2 Red Copper Catalysis:The kettle dome and critical column segments are crafted from 99.9% T2 red copper. This ensures essential catalytic sulfur removal, providing the smooth, velvety mouthfeel required for top-shelf vodka and gin.

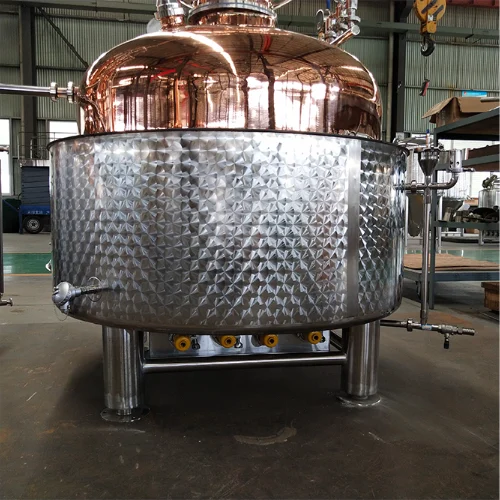

- Integrated Agitation & Jacketed Kettle:Equipped with a high-torque industrial motor and a steam/electric jacketed base. This ensures uniform heating of the wash and prevents scorching, maintaining flavor consistency across every batch.
Built for Commercial Performance & Safety

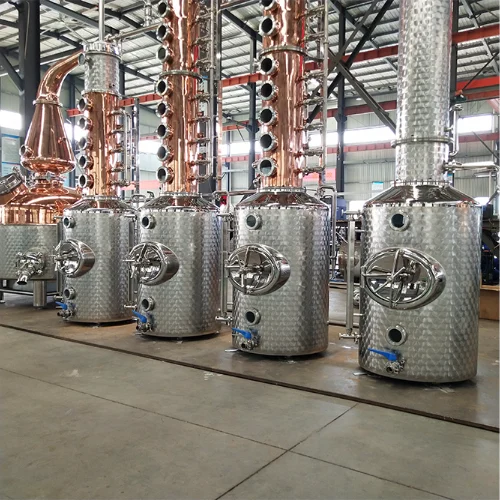

- Sanitary Skid-Mounted Design:The entire system is pre-assembled on a heavy-duty SUS304 stainless steel frame. This "Plug-and-Play"setup minimizes installation costs and allows for a compact, organized production footprint.
- Precision Thermal Management:Features high-performance shell-and-tube condensers and dephlegmators for rapid vapor chilling and fine-tuned reflux ratio control.
- Full Process Transparency:Outfitted with digital temperature monitoring at each column stage and high-visibility glass manways, giving master distillers complete control over the distillation curve.
Technical Specifications
Component | Specification |
Model | TGD V150 (High-Purity Series) |
Batch Capacity | 150 Liters / 40 Gallons |
Max ABV Output | Up to 95% (Neutral Spirits) |
Material Purity | 99.9% T2 Red Copper & SUS304 |
Standard Inclusions | Agitator, Multi-stage Columns, Gin Basket |
Compliance | CE Certified / Food-Grade Sanitary |
