Brandy & Rum Stills
TGD R1500 I | TengoDistill 1500L Industrial Copper Rum Still & Commercial Spirit Plant
TGD R1500 I: Industrial 1500L copper rum still. Multi-stage reflux for premium aged spirits. Turnkey, CE certified & commercial grade.
Specifications
- Model
- TGD R1500 I (Industrial Series)
- Capacity
- 1500 Liters / 396 Gallons
- Heating Method
- Industrial Jacketed Steam / High-Power Electric
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Target Spirits
- Rum, Whiskey, Brandy, High-Proof Spirits
- Compliance
- CE Certified
TGD R1500 I | The Industrial Workhorse for Commercial Rum Production

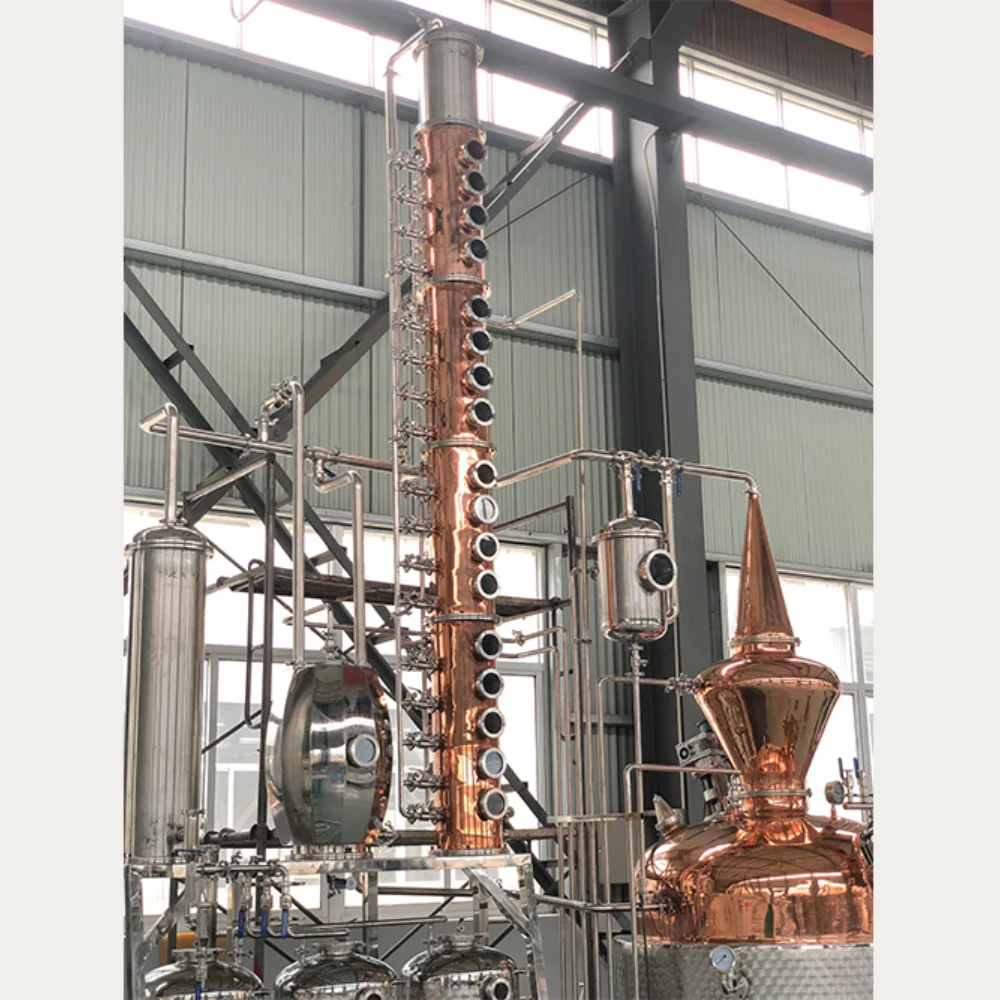

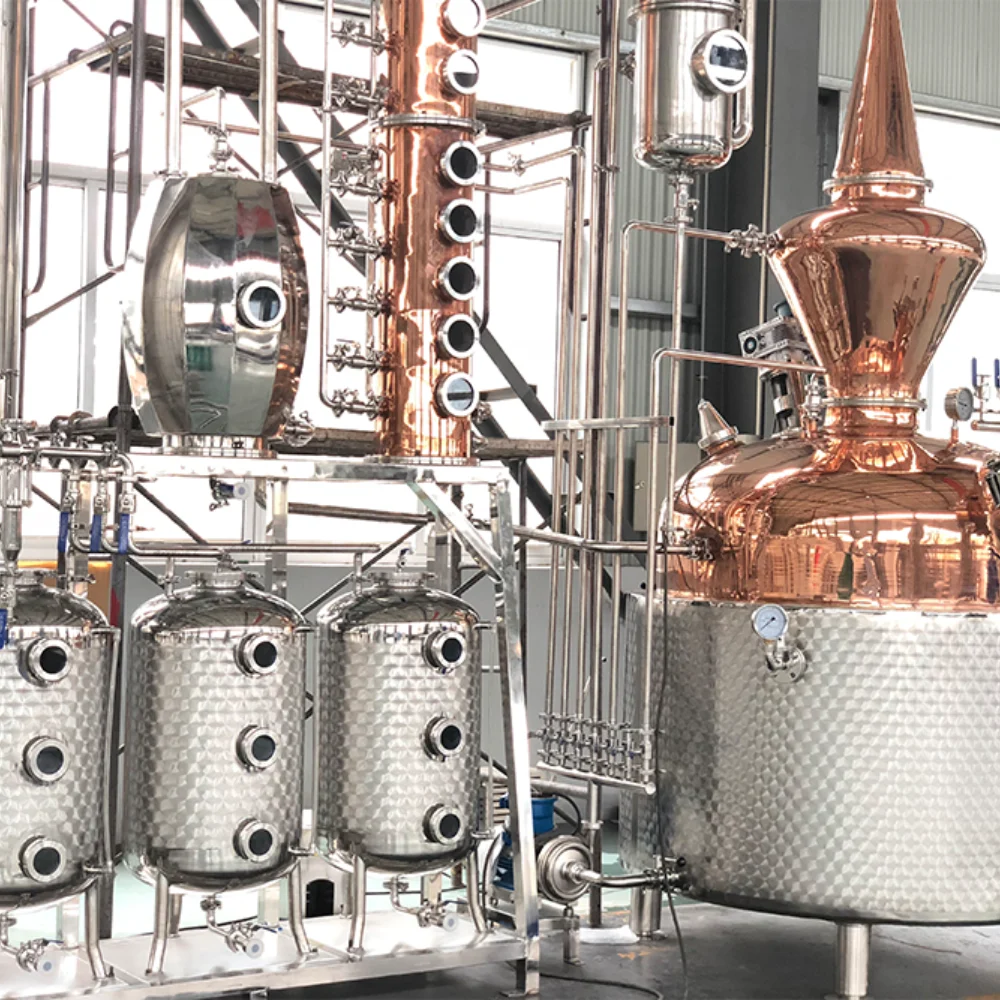

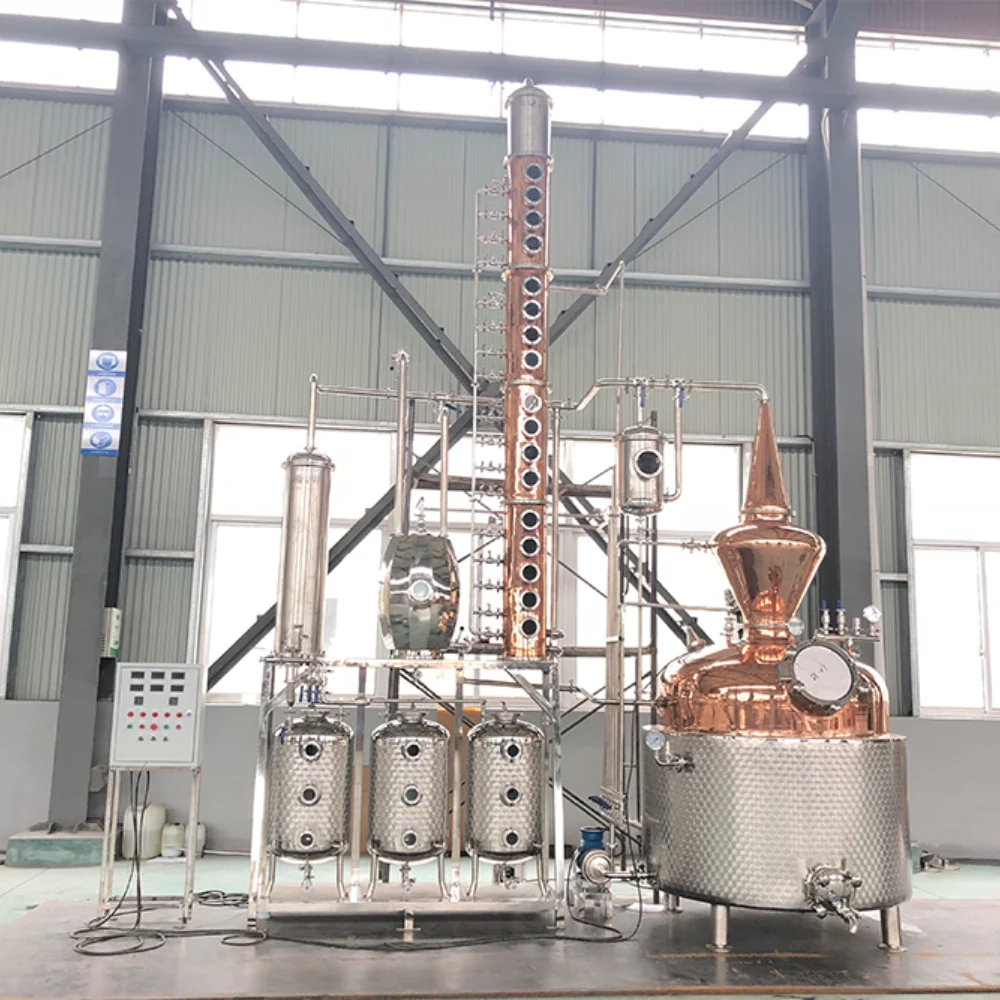

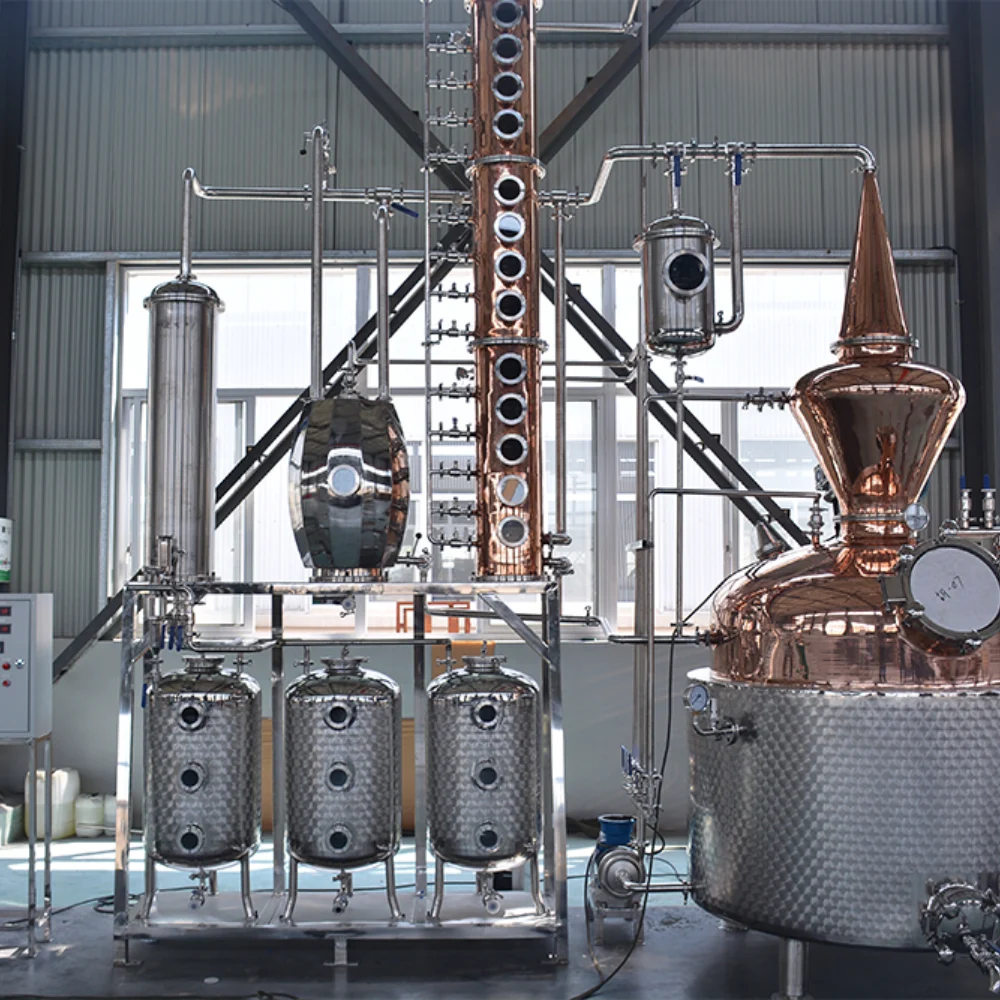

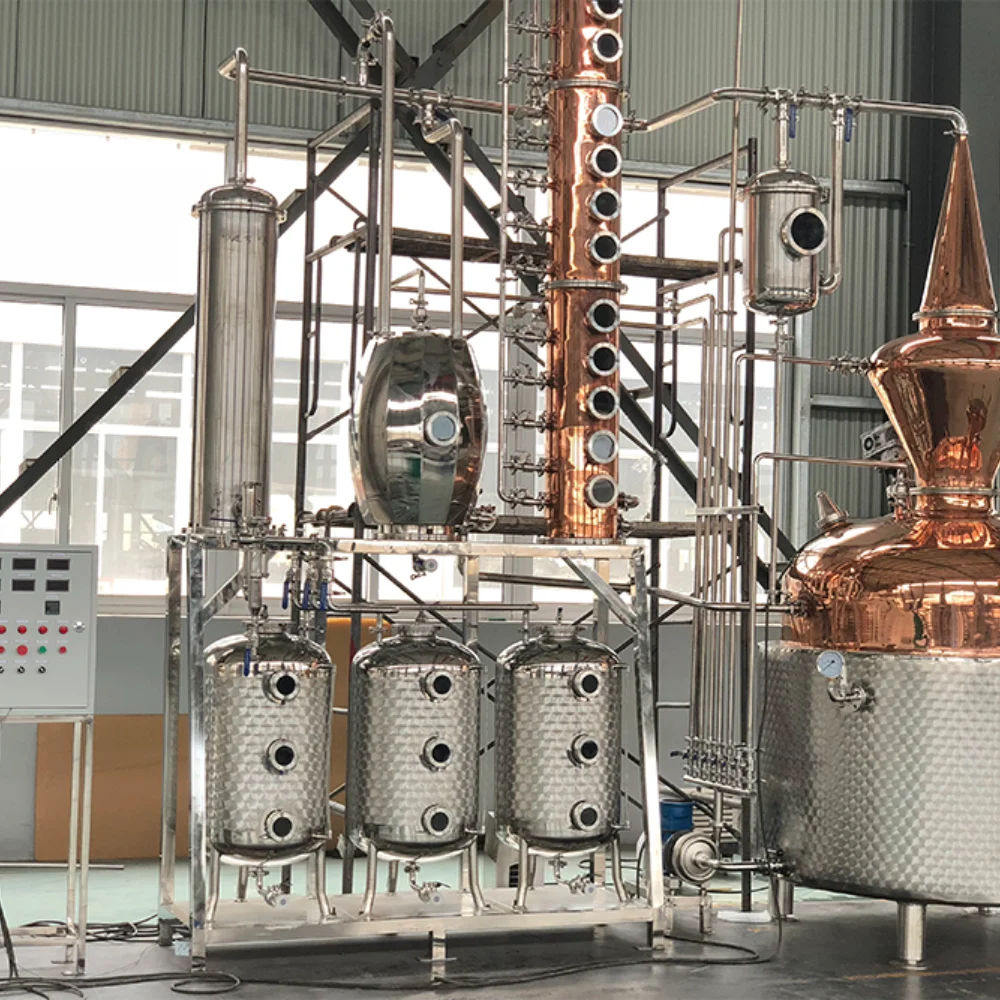

The TGD R1500 I is our premier 1500-liter (396 Gallon) Industrial Distillation Plant, specifically engineered for high-volume spirit manufacturing. Designed for established distilleries, this flagship system excels at producing heavy-bodied aged Rums, Whiskies, and Brandies, offering the perfect balance of massive catalytic copper surface area and industrial operational efficiency.
High-Throughput Engineering: Flavor at Scale
- Massive T2 Red Copper Catalysis: The kettle dome and critical vapor paths are meticulously crafted from 99.9% high-purity T2 red copper. In a 1500L system, this provides an immense surface area to effectively neutralize sulfur compounds, ensuring the refined, "soft" finish required for award-winning aged spirits.
- Modular Multi-Stage Reflux System: Equipped with professional columns that allow master distillers to fine-tune spirit character. The system can be configured to produce everything from rich, ester-heavy rums to high-purity spirits in a single pass.
- Integrated High-Torque Agitation: Features a powerful industrial motor and a jacketed kettle base (Steam/Electric compatible). This ensures uniform heating of the 1500L wash, preventing scorching and ensuring flavor consistency across massive production batches.
Built for Industrial Rigor & ROI
- Reinforced Skid-Mounted Architecture: The entire system is pre-assembled on a heavy-duty SUS304 stainless steel frame. This "Plug-and-Play" design maximizes floor space efficiency and drastically reduces onsite installation time and commissioning costs.
- Precision Sanitary Engineering: All fluid paths utilize sanitary tri-clamp connections. Every joint is expert TIG welded and mirror-polished (Ra < 0.6μm), making the system fully CIP (Clean-in-Place) compatible to ensure zero batch contamination.
- Centralized Digital Control: Outfitted with high-fidelity digital temperature sensors and industrial pressure relief systems, providing total process transparency and safety for large-scale daily operations.
Technical Specifications
Component | Specification |
|---|---|
Model | TGD R1500 I (Industrial Series) |
Batch Capacity | 1500 Liters / 396 Gallons |
Primary Material | 99.9% T2 Red Copper & SUS304 |
Heating Method | Industrial Jacketed Steam / High-Power Electric |
Target Spirits | Rum, Whiskey, Brandy, High-Proof Spirits |
Certifications | CE Certified / Food-Grade Sanitary |
💡 Customized 3D distillery layout and piping engineering services are included with the R1500 series."
