Multi-Functional Modular Stills
TGD M200 | TengoDistill 200L Modular Multi-Functional Red Copper Still
TGD M200L: Professional 200L modular copper still with multi-plate column. Craft whiskey, gin, and vodka on one high-performance platform.
Specifications
- Model
- TGD M200 (Multi-Purpose)
- Capacity
- 200 Liters / 53 Gallons
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Heating Method
- Electric (Internal) / Steam / Direct Fire
- Standard Inclusions
- Agitator, Gin Basket, Reflux Column, Condenser
- Build Standard
- CE Certified

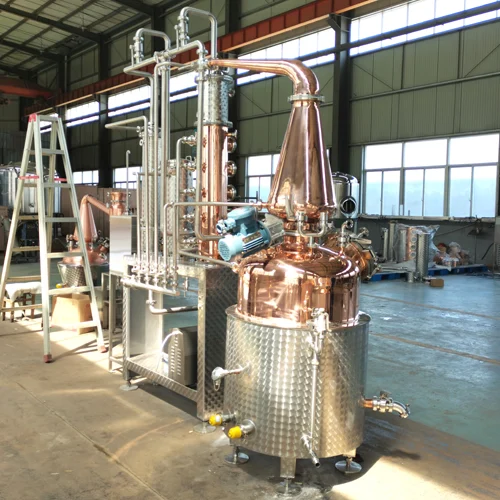

TGD M200 | The Professional Platform for Versatile Craft Distillation
The TGD M200Lis a highly versatile 200-liter (53 Gallon) distillation system engineered for distillers who require the flexibility to produce a wide range of spirits without compromising on quality. Featuring a robust modular design and an advanced reflux column, this system is the ideal "all-in-one" solution for craft startups, brewpubs, and professional R&D labs.
Core Innovation: Unlimited Spirit Potential

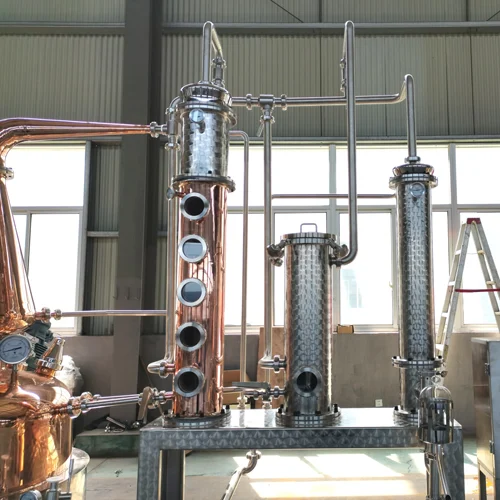

- Precision Modular Column:Equipped with a 4-plate reflux distillation column. The modular architecture allows you to adjust the reflux levels on the fly, enabling the transition from rich, flavorful whiskies to high-purity (95% ABV) neutral spirits in a single run.

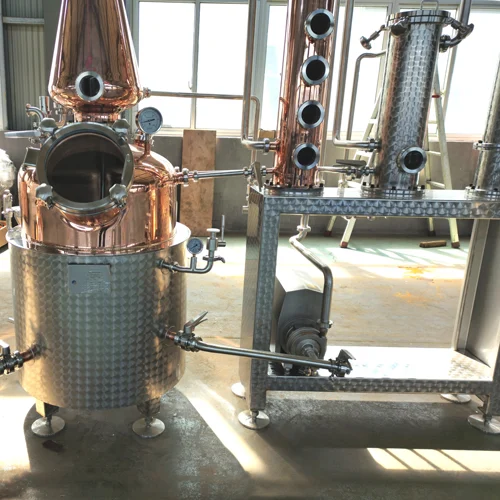

- Premium T2 Red Copper Catalysis:The entire boiling kettle dome and column segments are crafted from 99.9% T2 red copper. This ensures optimal catalytic reaction to remove sulfur compounds, resulting in the clean, sophisticated mouthfeel required for premium brandies and spirits.
- Integrated High-Torque Agitation:Features a powerful industrial motor to ensure consistent heat distribution. This prevents scorching of grain mashes or fruit washes, ensuring batch-to-be-batch consistency and effortless cleaning.

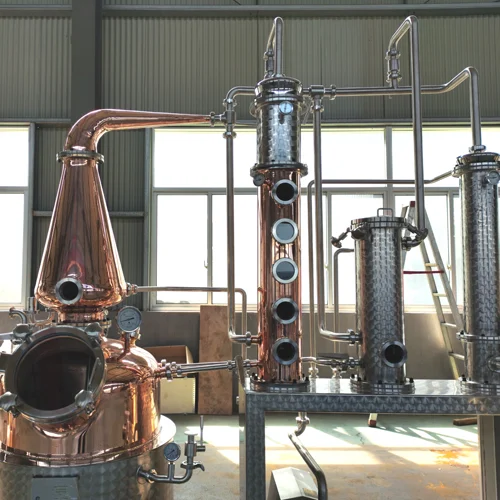

- Vapor-Infusion Gin Basket:Standard on the M200L, the dedicated gin basket allows for rapid and precise botanical infusion, delivering layered and delicate aromatic profiles for artisanal gins.
Industrial Excellence & Safety

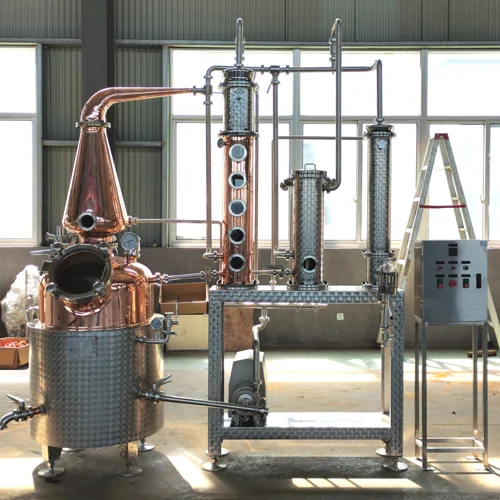

- Sanitary Skid-Mounted Design:Pre-assembled on a heavy-duty SUS304 stainless steel frame. This "plug-and-play"architecture ensures a compact footprint and slashes onsite installation costs, making it truly Ready-to-Run.

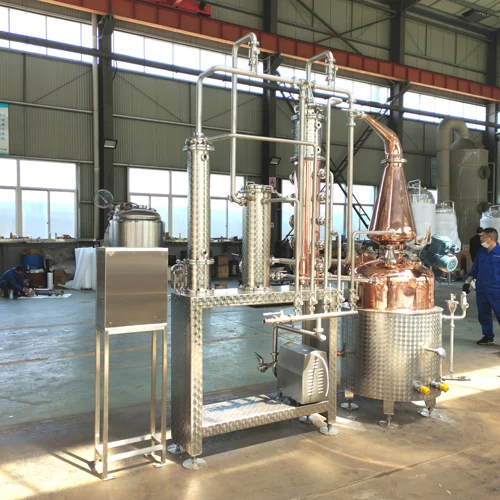

- Superior Thermal Efficiency:Utilizing high-performance shell-and-tube condensers, the TGD M200L ensures rapid vapor chilling while optimizing water usage and energy consumption.
- Professional Monitoring:Outfitted with digital temperature gauges at every stage and industrial pressure relief valves, providing a secure and repeatable distilling environment.
Technical Specifications
Component | Specification |
Model | TGD M200L (Multi-Purpose) |
Working Capacity | 200 Liters / 53 Gallons |
Heating Method | Electric (Internal) / Steam / Direct Fire |
Material Purity | 99.9% T2 Red Copper & Food-Grade SUS304 |
Standard Inclusions | Agitator, Gin Basket, Reflux Column, Condenser |
Build Standard | CE Certified / Sanitary Grade |
