Gin & Vodka Column Stills
TGD G300 | 300L Commercial Copper Gin Distillation System with Botanical Basket | TengoDistill
TGD G300: Commercial 300L copper gin still with integrated botanical basket & multi-plate column. Vapor infusion & maceration in one CE-certified turnkey system.
Specifications
- Model
- TGD G300 (Commercial Gin Series)
- Capacity
- 300 Liters / 79 Gallons
- Material
- Red Copper (99.9% Purity) + SUS304 Stainless Steel
- Warranty
- 12 Months Parts & Technical Support
- Heating Source
- Jacketed Steam / Multi-Stage Electric
- Automation
- PID Digital Temperature & Flow Control
- Column
- Multi-Plate Copper Reflux Column with Bypass Option
- Condenser
- Shell & Tube with Copper Core
TGD G300 | The Commercial Standard for Craft Gin Production

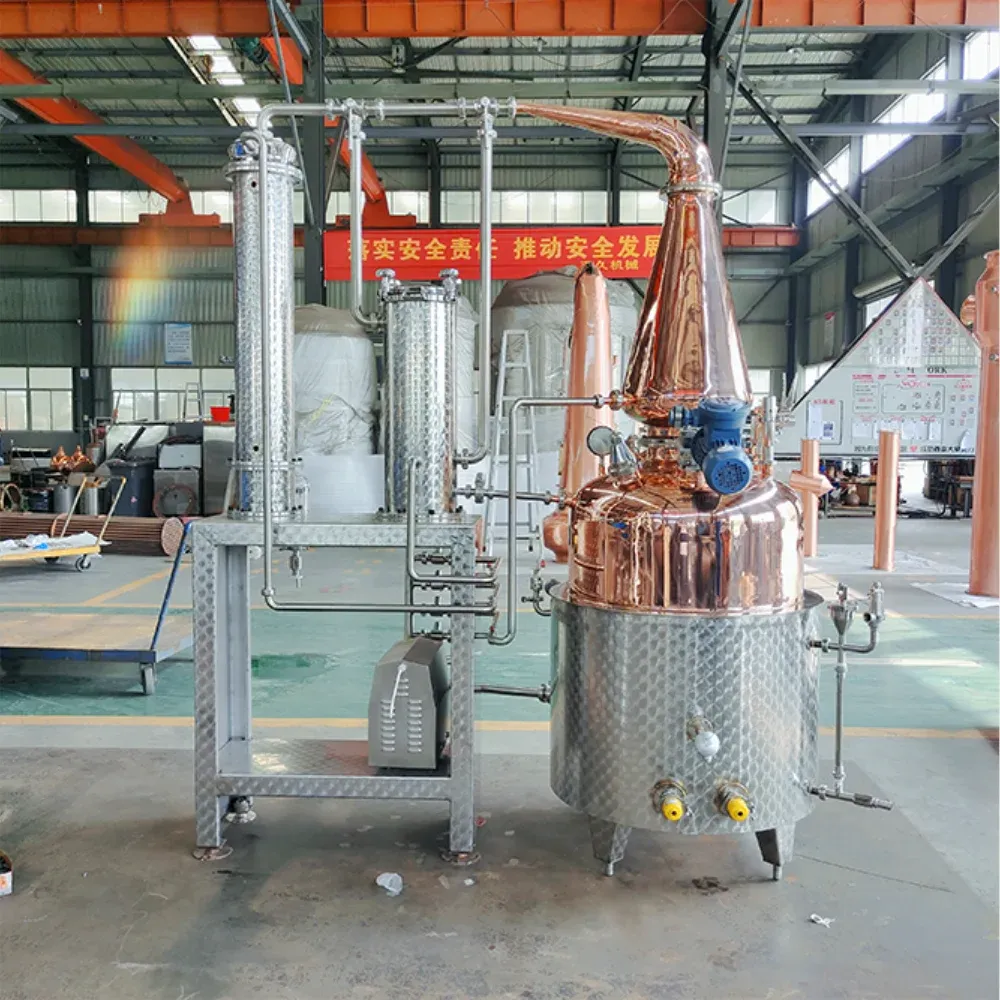

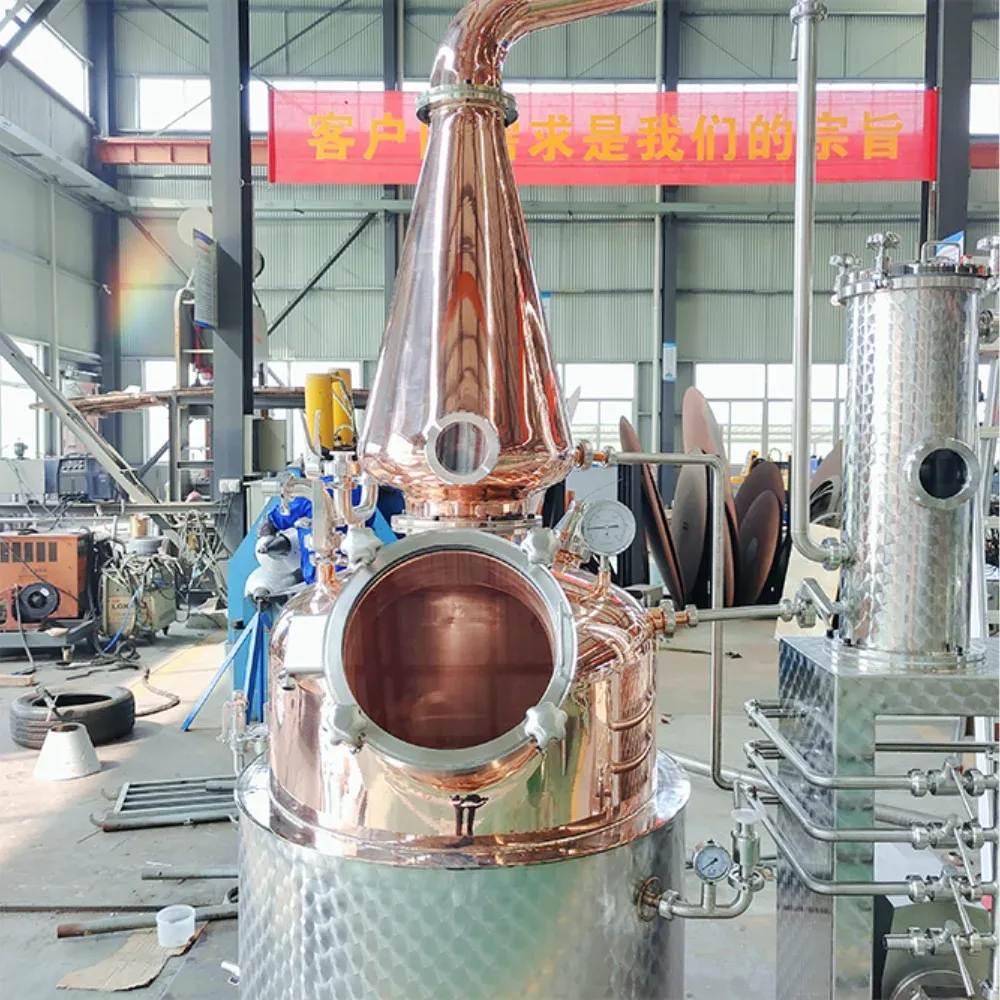

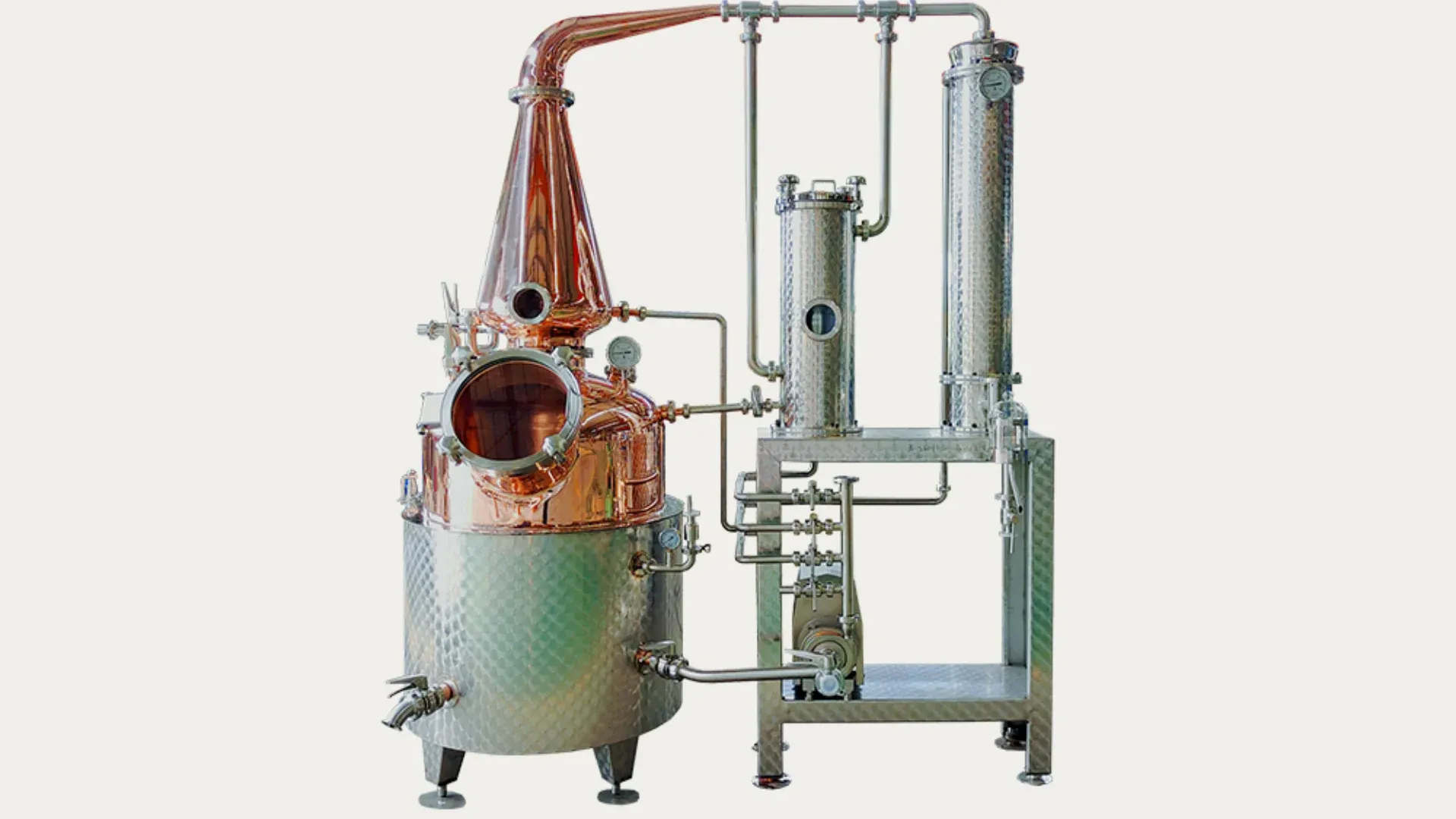

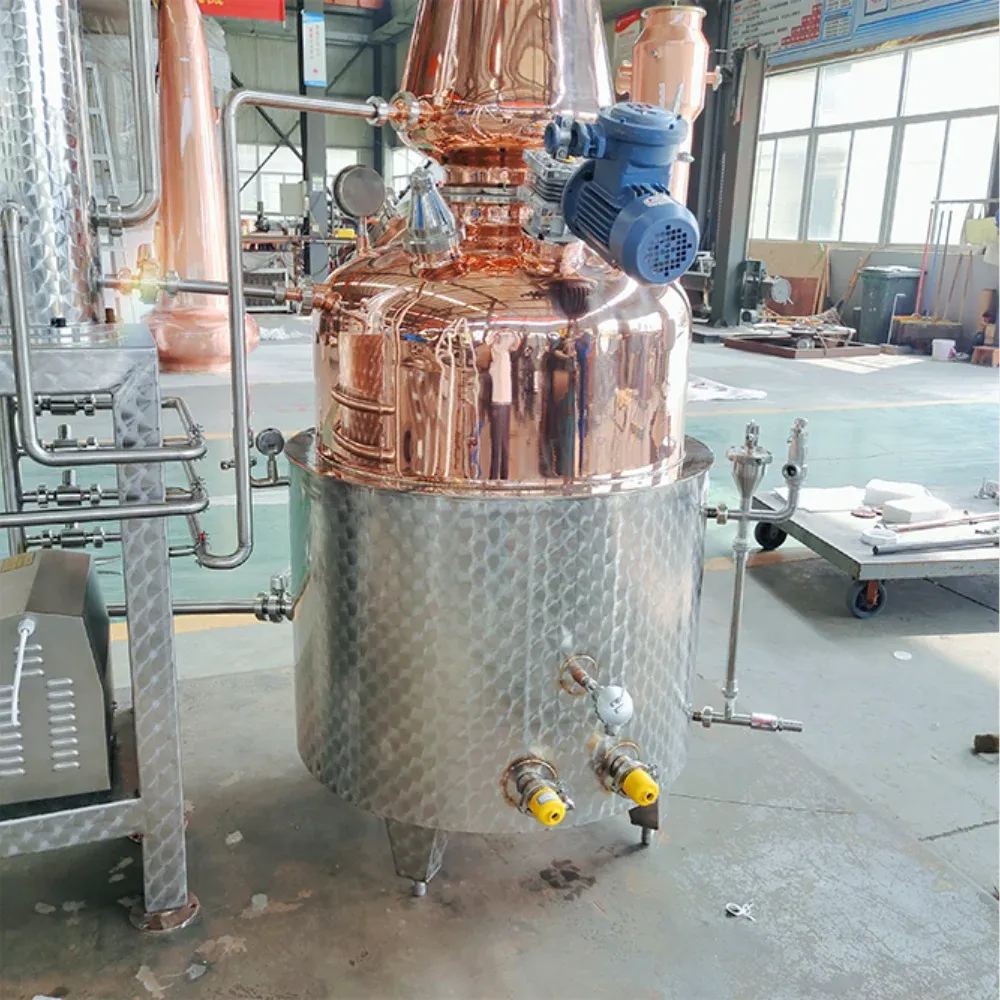

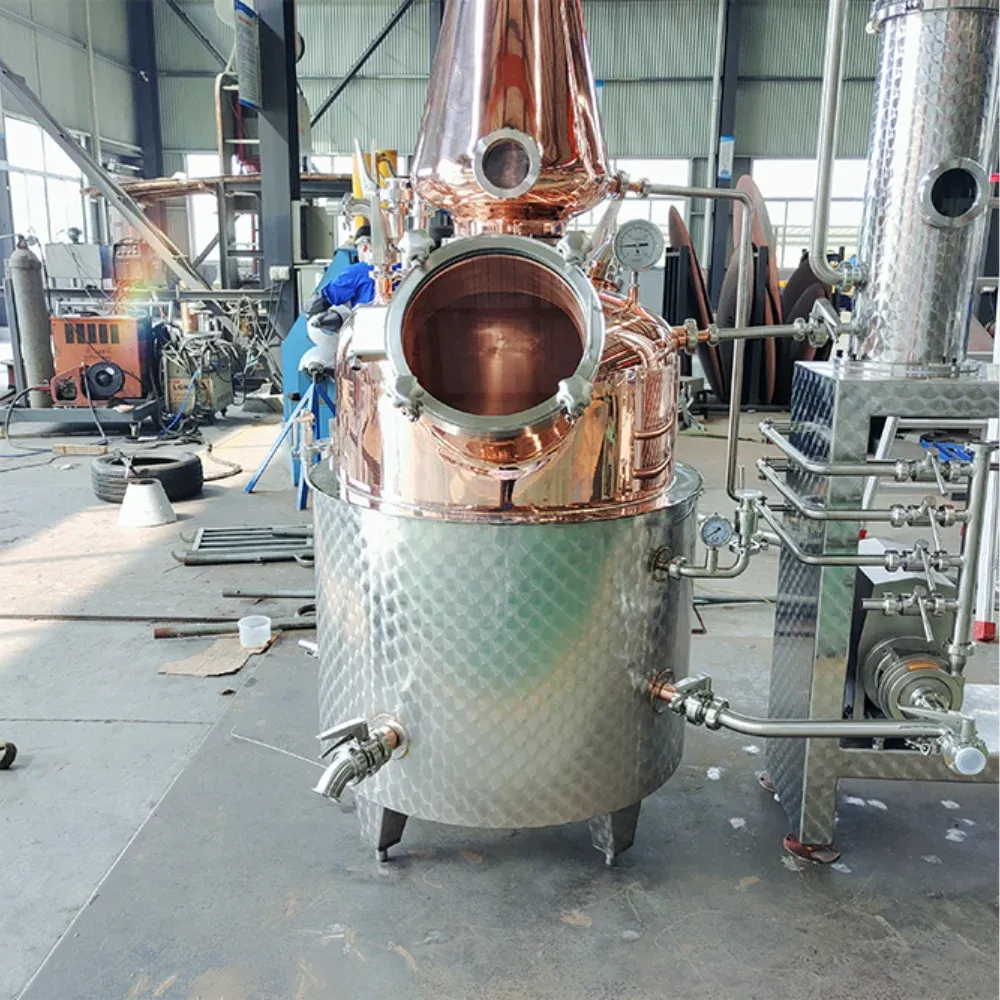

The TGD G300 is a production-ready 300-liter (79 Gallon) Copper Gin Distillation System built for craft distillers moving from recipe development into real revenue. Combining an integrated botanical basket, a multi-plate copper column, and a full red copper vapor path, the G300 produces premium gin at commercial volumes — with the same flavor precision you perfected on the pilot bench.
Botanical Basket Engineering for True Vapor Infusion

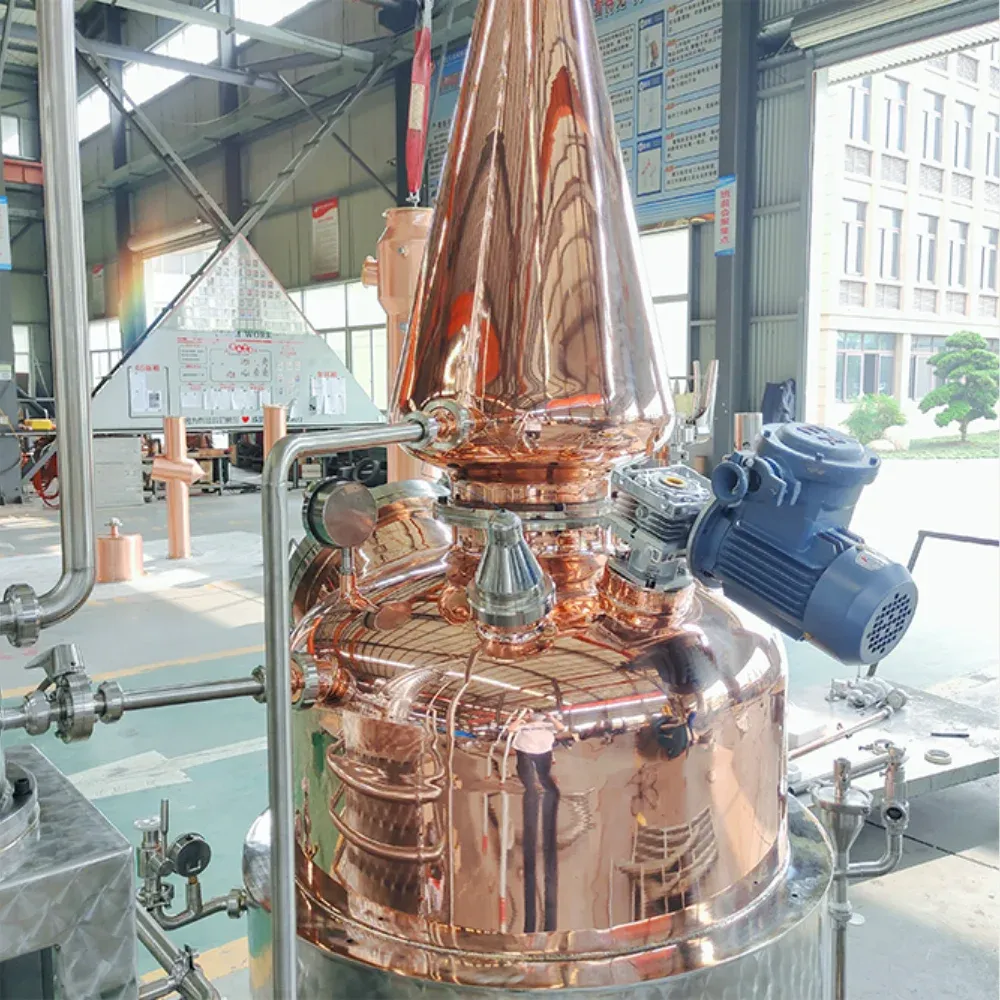

- 25L Copper Botanical Basket: Sized for full-recipe loads with 30% vapor circulation headspace. No channeling, no bypass — even extraction across every botanical, from juniper to delicate citrus peel.
- Bypassable Column Section: Run the multi-plate column for high-purity neutral spirit, or bypass it entirely to protect fragile aromatics during botanical runs. One system, every gin style.

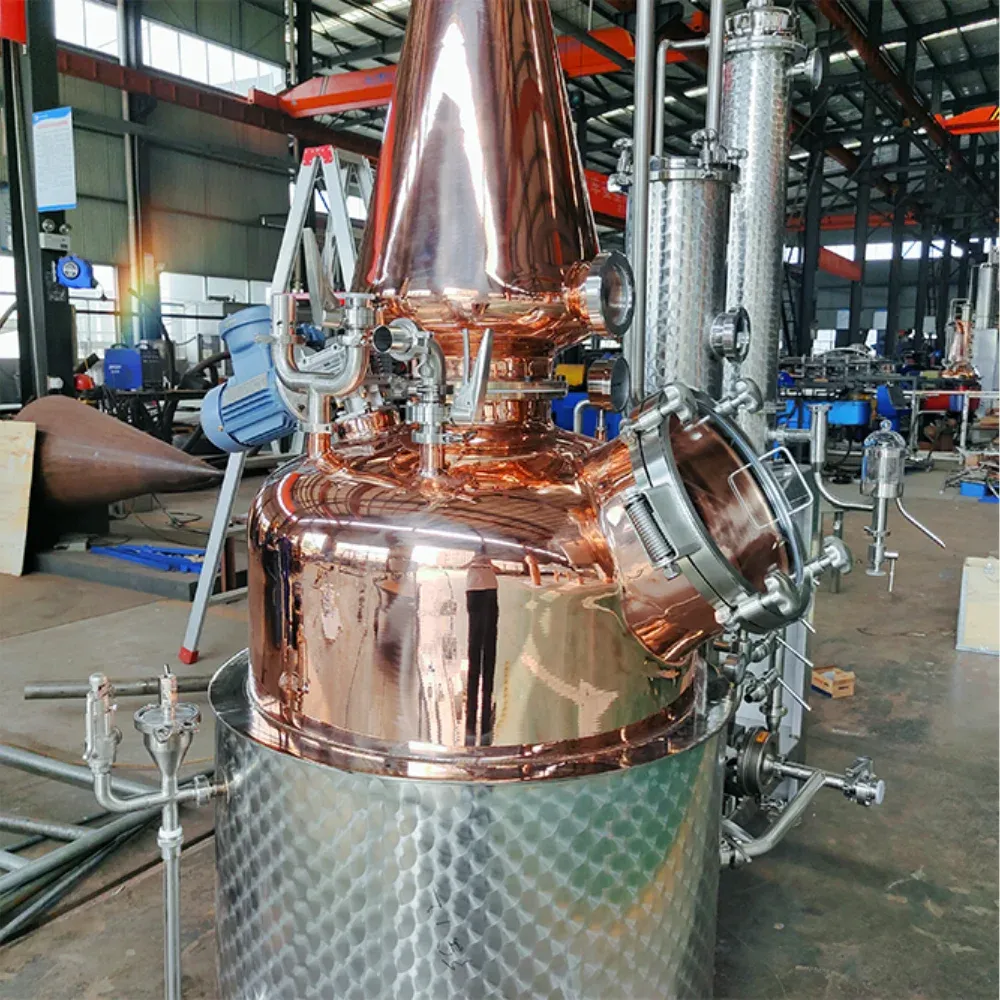

- Red Copper Vapor Path: 99.9% purity copper from pot to condenser neutralizes sulfur compounds before they reach your botanicals, guaranteeing the clean canvas premium gin demands.
Triple-Method Versatility on One Platform
- Vapor Infusion: Bright, aromatic, contemporary gins with protected top notes.
- Maceration: Bold, oily, traditional styles with deep botanical weight.
- Split Method: Macerate hardy roots and juniper in the pot while vapor-infusing delicate florals — the technique behind many award-winning modern gins.
Built for Commercial Throughput
- 30–60L Finished Gin per Run: Depending on your recipe and method, one G300 shift covers a full week of tasting-room sales or a serious distribution order.
- PID Digital Control: Temperature and flow managed to ±0.5°C. Lock in your cut points and replicate them across every batch, every operator, every season.
- Sanitary Tri-Clamp Design: Tool-free disassembly for cleaning and botanical changeovers. Less downtime, more distilling.
Scale Without Re-Engineering

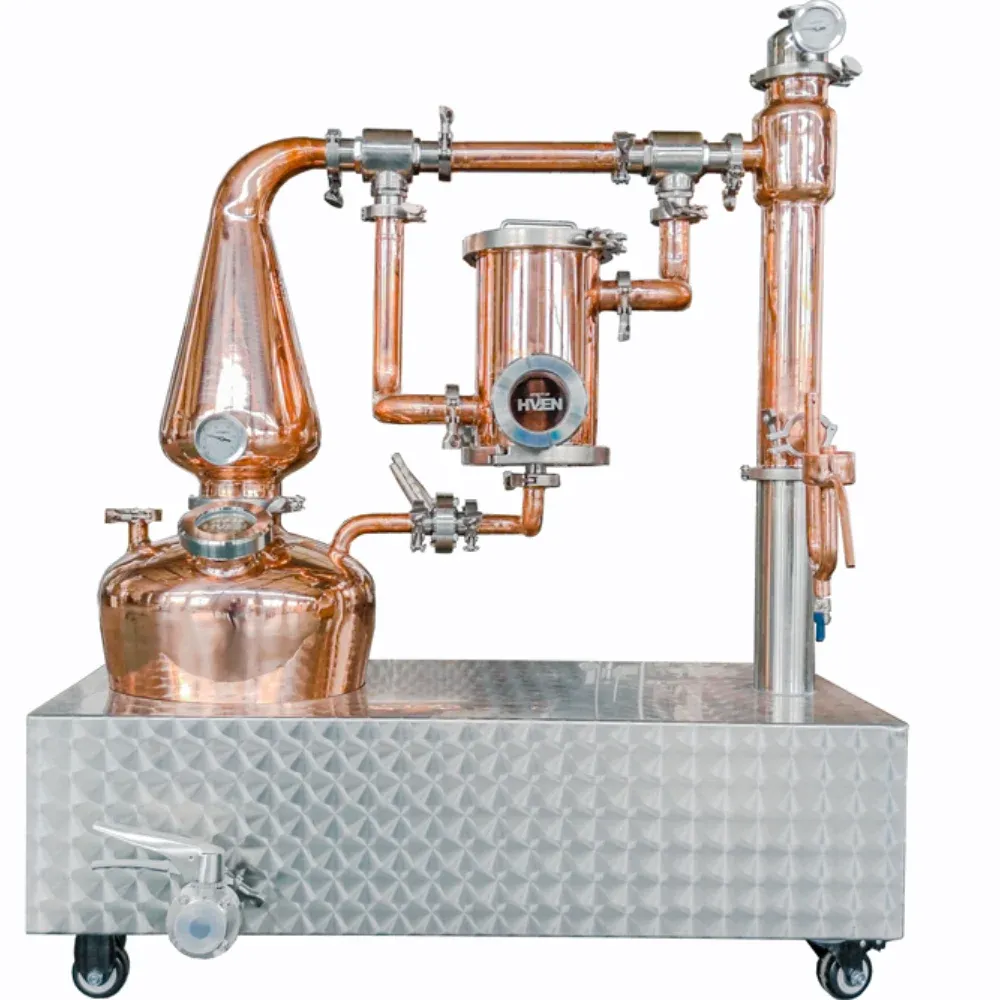

Recipes developed on the TGD G20 pilot still transfer directly to the G300 — same basket geometry, same vapor path design, same copper contact. And when 300L is no longer enough, your process scales again to the TGD G1000 industrial system. Your recipe grows with your brand, never against it.
FAQ:
Q: How much gin can the TGD G300 produce per batch?
A: Depending on botanical load and distillation method, the G300 yields approximately 30–60 liters of finished gin per run. Most craft producers run 3–5 batches per week, supporting serious regional distribution.
Q: Can the G300 make both gin and vodka?
A: Yes. With the multi-plate column engaged, the G300 produces neutral spirit up to 92% ABV suitable for vodka or as a gin base. Engage the botanical basket with the column bypassed for vapor-infused gin runs.
Q: What neutral spirit should I use with the G300?
A: You can redistill purchased neutral grain spirit (most common for craft gin) or produce your own base spirit on the same system. Charge the pot at 45–60% ABV for optimal botanical extraction.
Q: How do I scale my G20 pilot recipe to the G300?
A: Directly. The G300 shares the G20's basket geometry and vapor path design, so botanical ratios, extraction times, and cut points transfer without reformulation.
Q: Is the G300 certified for export markets?
A: Yes. Every G300 is CE certified, built to ISO 9001 food-grade standards, and ships worldwide from Shanghai and Ningbo ports with professional industrial packaging.
