Gin & Vodka Column Stills
TGD G20 | TengoDistill 20L Pilot Gin Still & Copper Botanical Alembic Distiller
TGD G20: Professional 20L pilot gin still with botanical basket. Perfect for R&D labs and micro-batch craft spirits. Mobile & turnkey.
Specifications
- Model
- TGD G20 (Pilot/R&D Series)
- Capacity
- 20 Liters / 5 Gallons
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Compliance
- CE Certified / Food-Grade Sanitary
- Infusion System
- Precision Copper Gin Basket
- Safety Features
- Platforms, Railings, Dual Pressure Relief
- Heating Method
- Integrated Electric / Water Bath / Gas
- Mobility
- Heavy-duty Casters on SS Skid
TGD G20 | The Ultimate R&D Platform for Professional Gin Crafting
The TGD G20is a precision-engineered 20-liter (5 Gallon) Pilot Distillation Systemdesigned specifically for master distillers, fragrance labs, and artisanal entrepreneurs. As the "Gold Standard" for recipe development, this compact powerhouse allows you to test botanical blends and refine spirit profiles with the same accuracy as industrial-scale systems.
The Art of Botanical Infusion: Master Your Gin

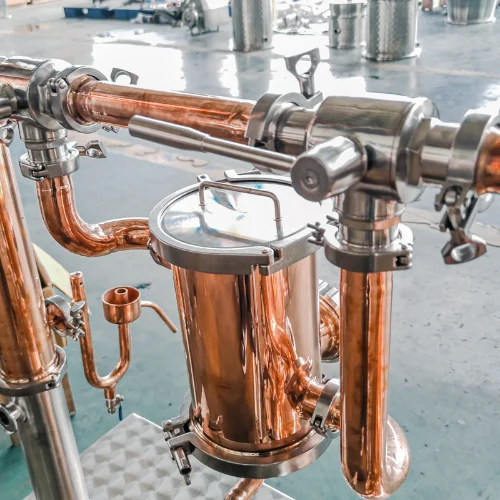

- Specialized Vapor-Infusion Gin Basket:The G20 features an integrated copper botanical basket. This allows for delicate flavor extraction through vapor infusion, ensuring the capture of bright, layered citrus and floral notes without the bitterness of maceration.

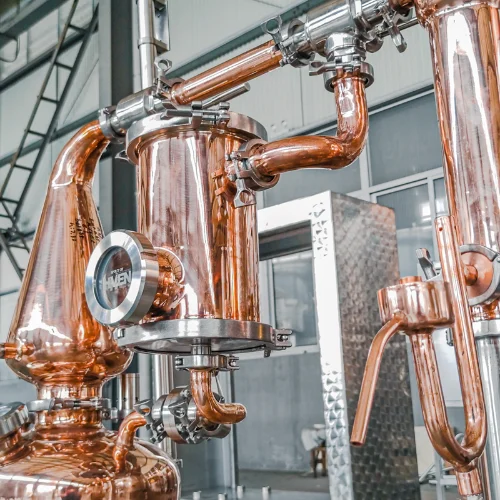

- Traditional T2 Red Copper Alembic:Crafted from 99.9% high-purity T2 red copper, the onion head and vapor path offer superior catalytic sulfur removal. This ensures a remarkably clean, velvety mouthfeel for your small-batch gin, vodka, or brandy.
- Precision Temperature Management:Outfitted with high-fidelity analog and digital monitoring, providing the absolute control required for making precise "head, heart, and tail" cuts on a pilot scale.
Designed for Portability & Versatility

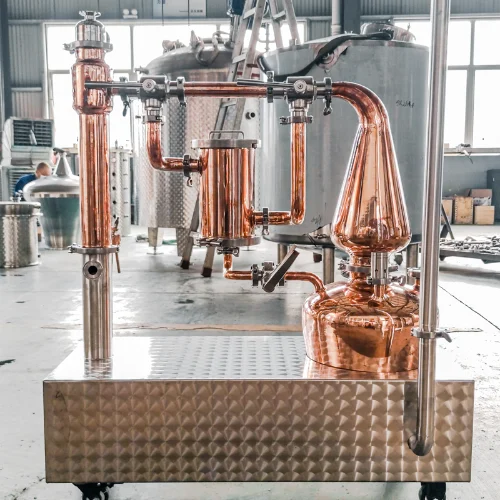

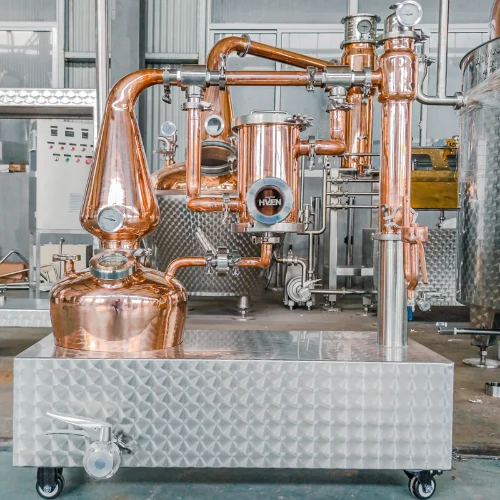

- Mobile Skid-Mounted Architecture:The entire unit is mounted on a compact SUS304 stainless steel skid with heavy-duty lockable wheels. This "Plug-and-Play"design makes it easy to move between laboratory benches or production areas.
- Multi-Purpose Pilot Unit:Beyond gin, the G20 is an exceptional tool for distilling high-end brandies, whiskies, and even botanical essential oils/hydrosols, making it a versatile asset for any craft beverage business.
- Sanitary Engineering:Every joint is TIG welded and polished to a sanitary mirror finish (Ra < 0.6μm), ensuring easy sterilization and zero flavor cross-contamination between experimental batches.
Technical Specifications
Component | Specification |
Model | TGD G20 (Pilot/R&D Series) |
Batch Capacity | 20 Liters / 5 Gallons |
Heating Method | Integrated Electric / Water Bath / Gas |
Infusion System | Precision Copper Gin Basket |
Material | 99.9% T2 Red Copper & SUS304 |
Mobility | Heavy-duty Casters on SS Skid |
