Brandy & Rum Stills

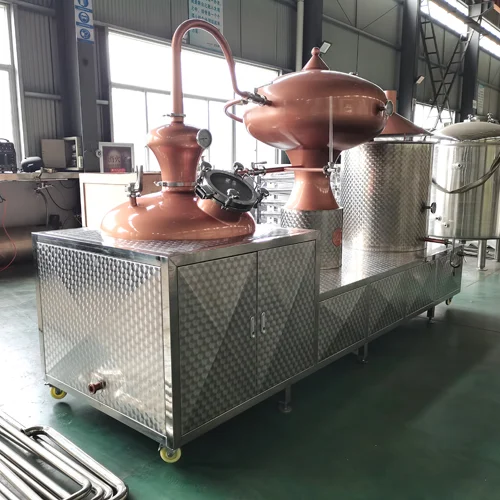

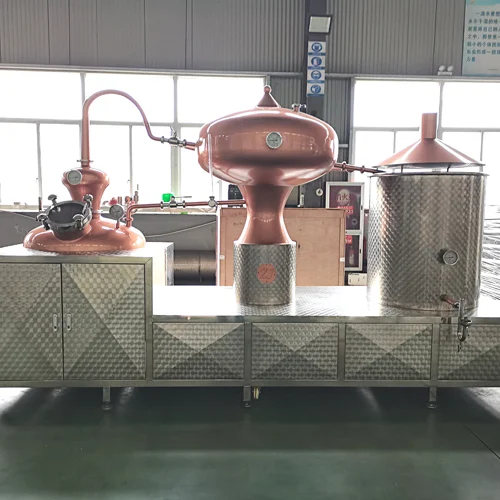

TGD B300 | TengoDistill 300L Charentais Copper Still for Premium Brandy & Cognac
The TGD B300L is an authentic 300L (80 Gallon) Charentais-style distillation system, the gold standard for producing world-class Cognac and Brandy. Built with 99.9% T2 red copper, this dual-distillation setup includes a specialized wine pre-heater for maximum energy efficiency and flavor ester retention. Perfect for artisanal wineries and boutique distilleries seeking traditional French excellence.
Specifications
- Model
- TGD B300
- Name
- 300L Charentais Still / Alembic Distiller
- Capacity
- 300L (Customizable)
- Primary Material
- 304 Stainless Steel / TP2 Red Copper
- Heating Method
- Electric Heating / Steam Heating
- Voltage
- 220V/240V/380V/415V, etc.
- Dimensions
- 3850 x 1200 x 2250 mm
- Configuration
- Pot Still Type
TGD B300 | Authentic Charentais Copper Still for World-Class Cognac & Brandy
The TGD B300L is a premier distillation system designed for artisanal producers who aspire to the highest traditions of French spirit making. Specially engineered for the double-distillation of wine, this Charentais-style still is the global gold standard for producing premium Brandy, Cognac, and Armagnac.
By combining 18th-century artisanal heritage with 21st-century precision engineering, the TGD B300L delivers a spirit of unparalleled aromatic depth and elegance.
The Charentais Edge: Tradition Meets Efficiency

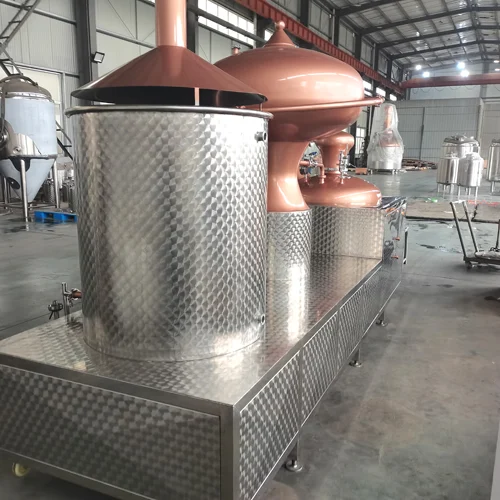

- Integrated Wine Pre-heater (Chauffe-vin): The standout feature of the TGD B300L is its central pre-heating tank. By utilizing the latent heat from the current distillation run to pre-warm the next batch of wine, this system reduces energy consumption by up to 30% and significantly shortens the production cycle between batches.

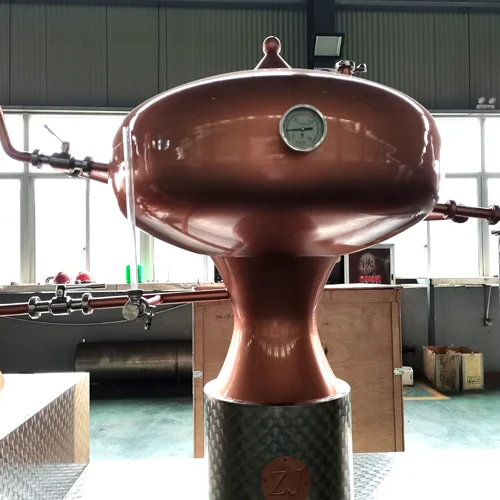

- Classic Onion Head Reflux: The iconic red copper "onion" dome is precisely shaped to maximize surface area for air-cooling. This facilitates a gentle reflux process, ensuring that only the finest, most complex flavor precursors (esters) reach the condenser, while heavy, undesirable elements return to the kettle.
- Pure T2 Red Copper Catalysis: The entire vapor path is constructed from 99.9% high-purity T2 red copper. This premium material is critical for neutralizing sulfur compounds during the "Bonne Chauffe" (second distillation), resulting in the silky-smooth mouthfeel and clean finish required for aged spirits.
Industrial Strength & Artisanal Craftsmanship
- Precision Sanitary Engineering: Every joint is expertly TIG welded and hand-polished to a mirror finish (Ra < 0.6μm). The system meets the highest food-safety and sanitary standards, ensuring effortless cleaning and zero cross-contamination.
- Turnkey Skid-Mounted Design: Unlike traditional masonry-built stills, the TGD B300L is pre-assembled on a robust SUS304 stainless steel skid. This "plug-and-play" configuration allows for rapid installation and relocation, offering micro-distilleries maximum operational flexibility.
- Smart Process Monitoring: Equipped with high-fidelity digital and analog temperature sensors at every stage (Kettle, Pre-heater, and Condenser), allowing master distillers to execute precise "cuts" with total repeatability.
The Professional Choice for Specialized Distillation
The TGD B300L is the ideal solution for:
- Estate Wineries: Transforming wine harvests into high-value, signature brandies.
- Craft Distilleries: Mastering the traditional French "Double Run" distillation technique.
- Innovation Labs: Developing complex aged spirit profiles with high ester retention.
Technical Specifications
Feature | Specification |
|---|---|
Model | TGD B300L (Charentais Series) |
Working Capacity | 300 Liters (80 Gallons) |
Material Purity | 99.9% T2 Red Copper / SUS304 |
Distillation Method | Double Distillation (Brouillis & Bonne Chauffe) |
Heating Source | Direct Fire / Steam / Electric Oil Bath |
Certification | CE Certified / Sanitary Food-Grade |
💡 Our TGD B300 follows the ancient tradition of Charentais distillation, enabling the 'brouillis' and 'bonne chauffe' double-run technique used by the world's most famous Cognac houses.
