TGD B100 | TengoDistill 100L Red Copper Brandy Still with Reflux Column Copy
TGD B100: Professional 100L red copper still with 4-plate reflux column & gin basket. Ideal for craft whiskey, brandy, and gin.
Specifications
- Model
- TGD B100
- Capacity
- 100 Liters (526 Gallons)
- Primary Material
- 99.9% T2 Red Copper / SUS304
- Column Type
- 4-Plate Modular Reflux Column
- Components Included
- Kettle, Column, Gin Basket, Condenser, Control Box
- Applications
- Brandy, Whiskey, Gin, Vodka, Rum
- Certification
- CE Certified / Sanitary Grade
Elevate Your Craft: The TGD B100 Professional 100L Still
The TGD B100 is a premier 100L distillation solution designed for craft distillers who refuse to compromise on spirit quality. By combining traditional copper craftsmanship with modern modular engineering, this system provides a flexible, high-yield platform for producing a wide range of premium spirits.
Core Technical Advantages

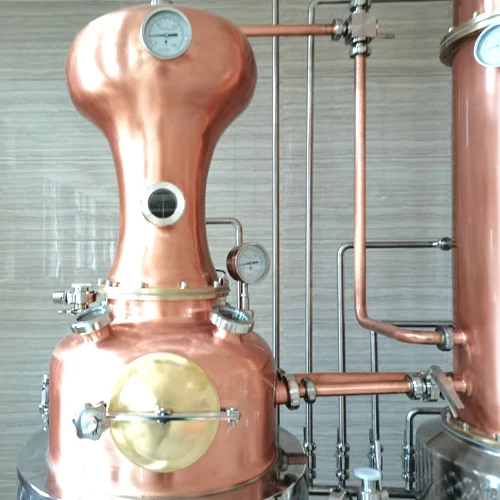

- T2 Red Copper Catalysis: The entire boiling kettle and distillation columns are built with 99.9% T2 red copper. This is essential for neutralizing sulfur compounds during distillation, resulting in a significantly cleaner and more refined aromatic profile for your brandies and whiskies.

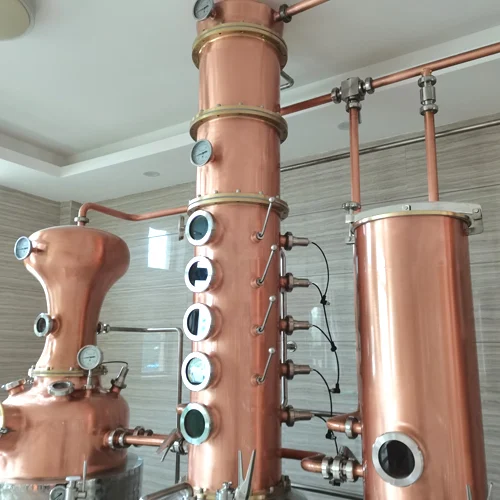

- Modular 4-Plate Reflux Column: Achieve total control over your final ABV and spirit character. The modular design allows you to easily adjust the reflux levels, enabling the production of everything from heavy-bodied brandies to high-purity neutral spirits.
- Vapor-Infusion Gin Basket: Included as standard, the integrated gin basket allows for precise botanical infusion. This ensures delicate, layered flavors for craft gins and flavored spirits in a single distillation run.
- Sanitary Mirror-Polish Finish: All internal and external surfaces feature a sanitary mirror-polish (Ra < 0.6μm). Coupled with expert-level TIG welding, our equipment meets the strictest food-grade standards and ensures effortless cleaning (CIP compatible).
Built for Operational Efficiency

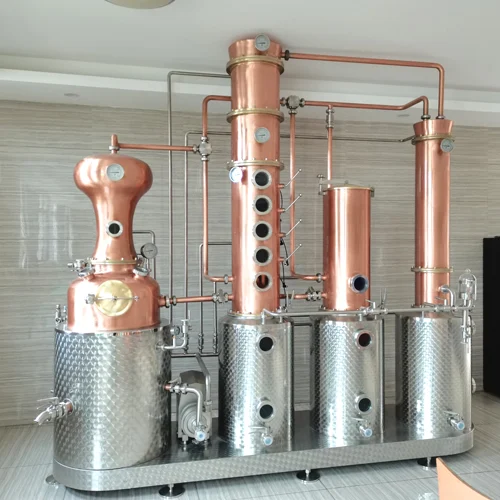

- Turnkey Skid Design: The TGD B100 is pre-assembled on a robust SUS304 stainless steel skid. This "plug-and-play" setup minimizes on-site installation complexity and allows you to begin production almost immediately upon delivery.
- High-Performance Cooling: Equipped with a heavy-duty shell-and-tube condenser, designed for maximum heat exchange and rapid vapor-to-liquid transition while minimizing water consumption.

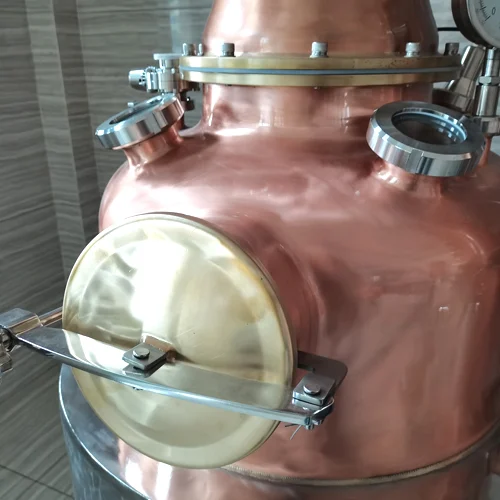

- Smart Monitoring & Safety: Features industrial-grade pressure relief valves, digital temperature sensors at every stage, and a wide-vision glass manway for real-time internal monitoring.
Technical Specifications
Name | 100L Brandy Distiller |
Capacity | 100L (Customizable) |
Material | 304 Stainless Steel / TP2 Red Copper |
Heating Method | Electric Heating / Steam Heating |
Voltage | 220V/240V/380V/415V, etc. |
Dimensions | 1400 x 900 x 2550 mm |
Uses | Distilling Brandy, etc. |
Configuration | Tower Type, Multifunctional Type |
💡 Customized bottling and filtration solutions are also available to complete your production line
