Whiskey & Pot Stills

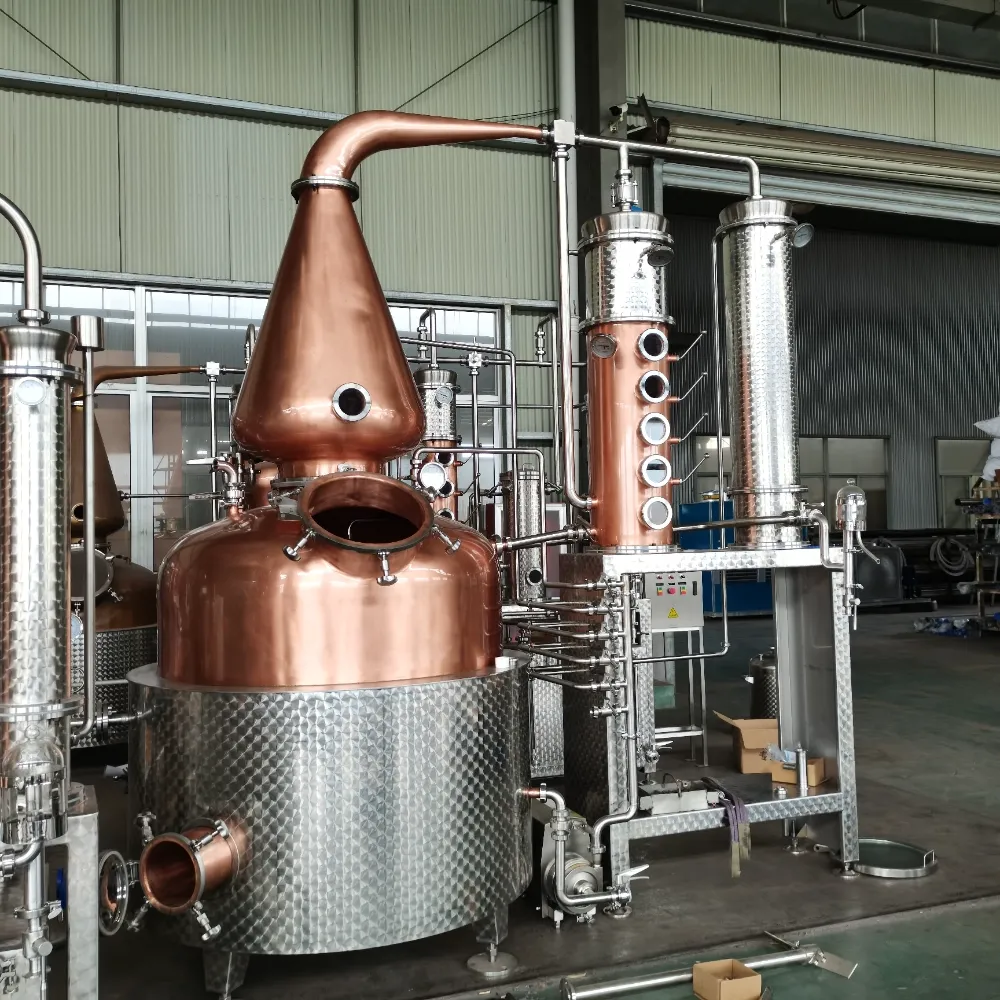

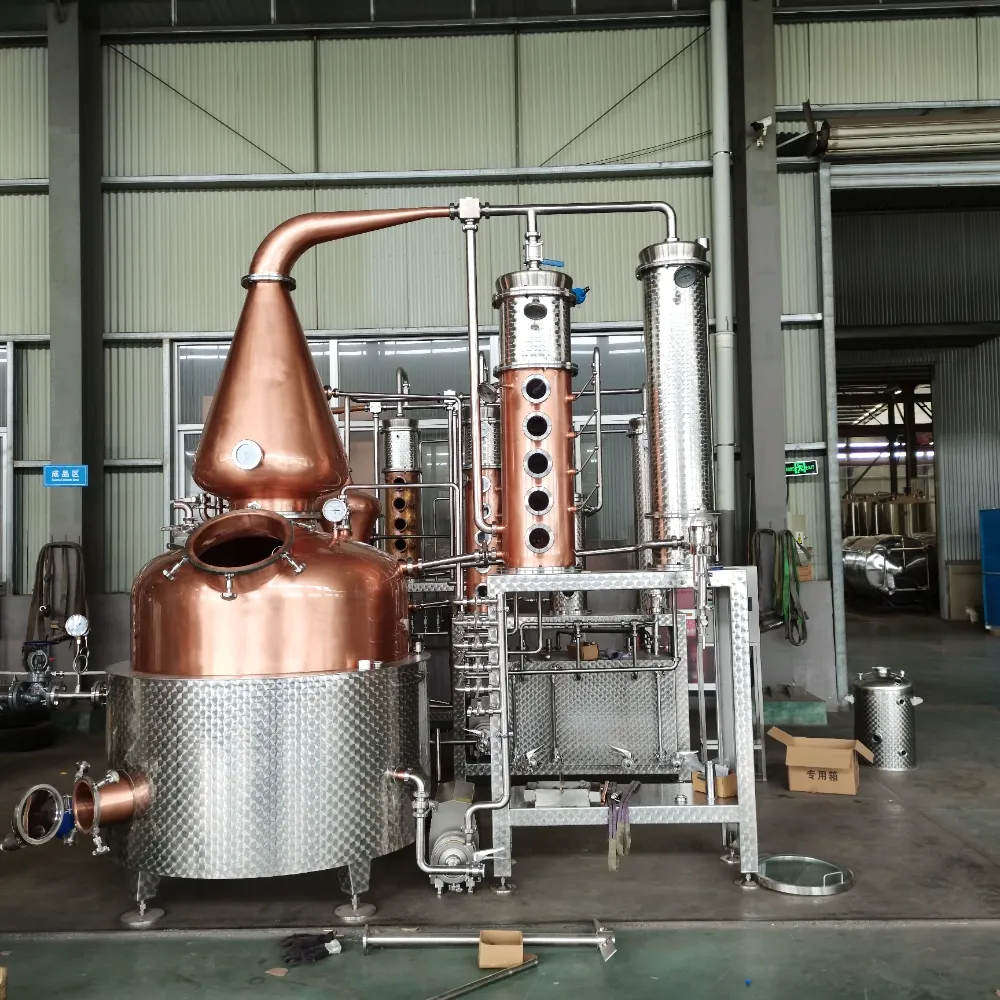

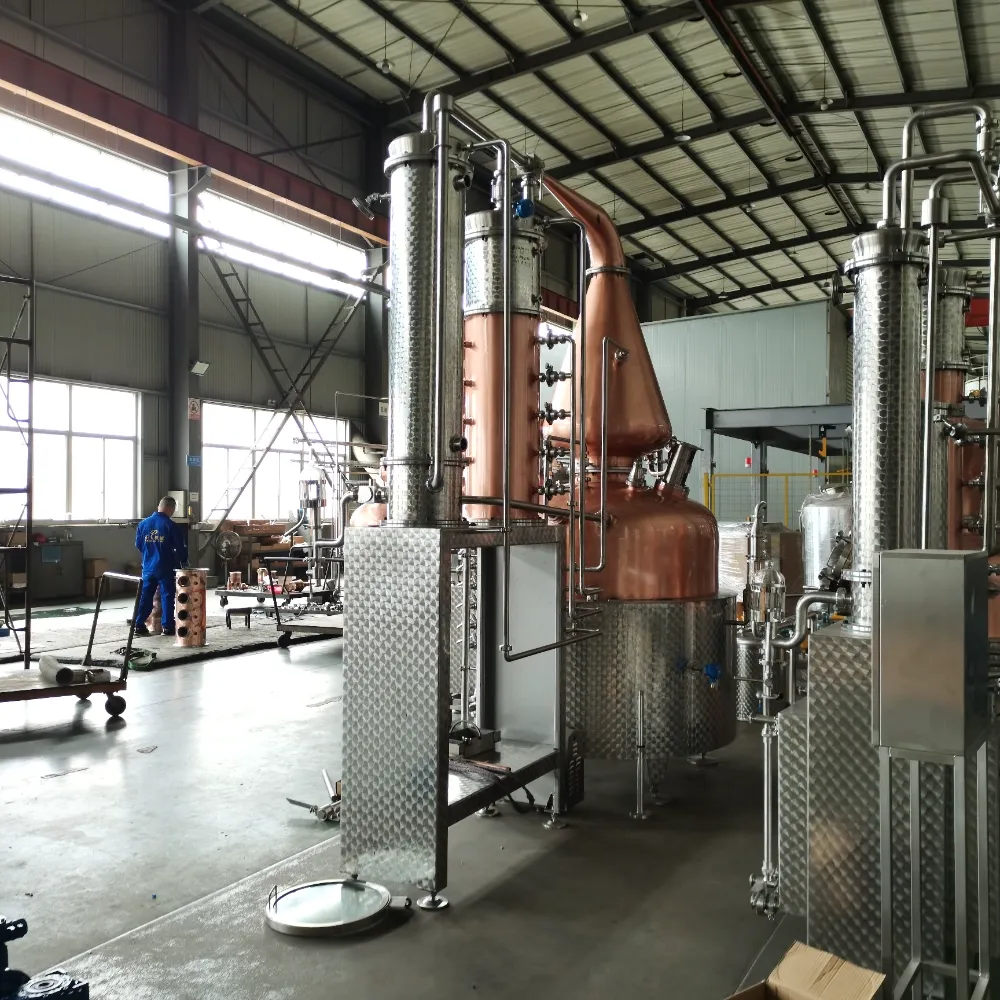

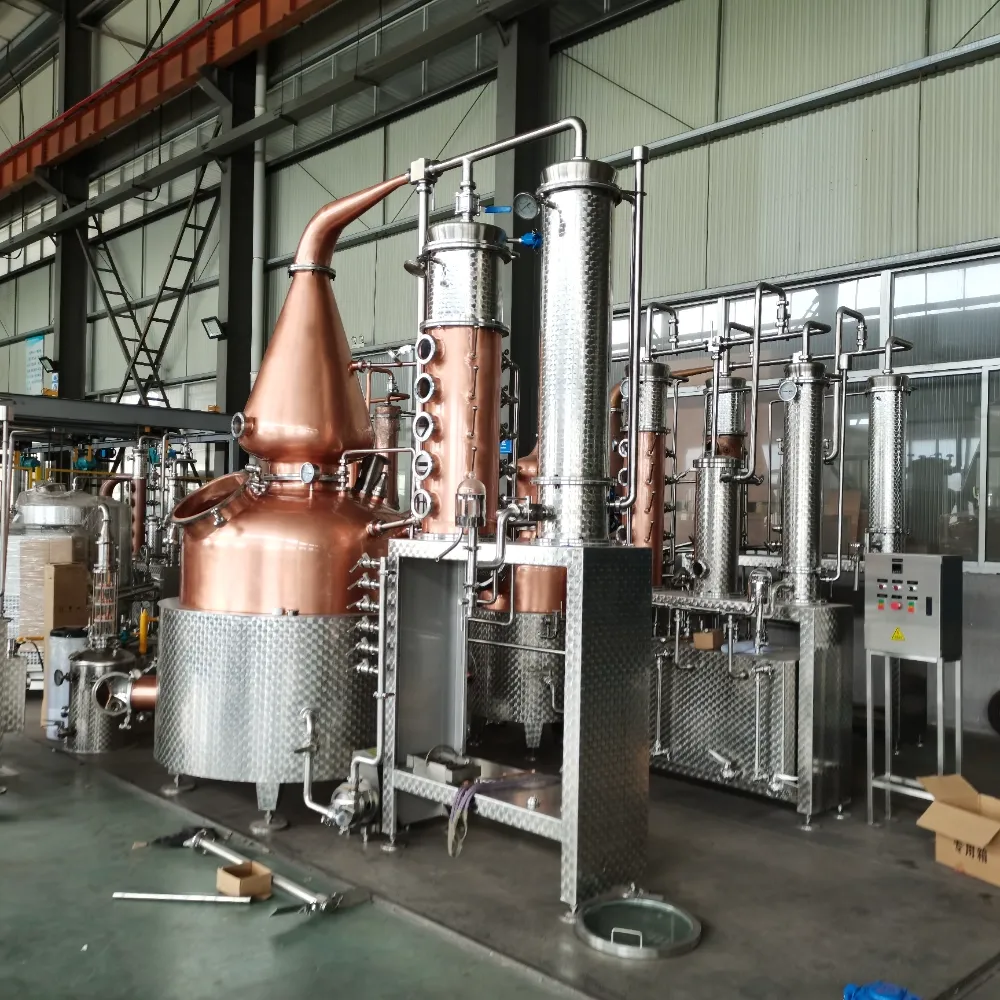

1000L Copper Pot Column Still Distillation Equipment For Whiskey Rum Brandy
Industrial 1000L copper pot column distillation equipment. Hybrid pot‑column design for whiskey, rum, brandy, grappa spirit production. Main body made of red copper, complete with column, condenser, piping and platform, custom available.
Specifications
- Capacity
- 1000L
- Main Material
- Red Copper /SS304 Stainless Steel
- Type
- Pot & Column Hybrid Still
- Application
- Whiskey, Rum, Brandy, Grappa, Fruit spirits
- Heating
- Steam heating (customizable electric / gas heating)
- Condition
- New, factory assembled & FAT test available
- Customization
- Support custom volume & configuration
TGS‑1000 | Hybrid Pot‑Column Still for Modern Craft Distilleries
The TGS‑1000 is a heavy‑duty 1000‑liter turnkey red copper pot‑column distillation system built for craft distillery entrepreneurs and professional spirit producers. This hybrid still merges traditional pot‑still character with column rectification flexibility, ideal for producing premium whiskey, rum, brandy, grappa, pisco and fruit‑infused spirits. The integrated skid‑mounted layout delivers stable reflux performance and modular expandability, enabling repeatable high‑quality spirit batches while optimizing your workshop floor‑space and operational ROI.
High‑Performance Pot‑Column Distillation Engineering

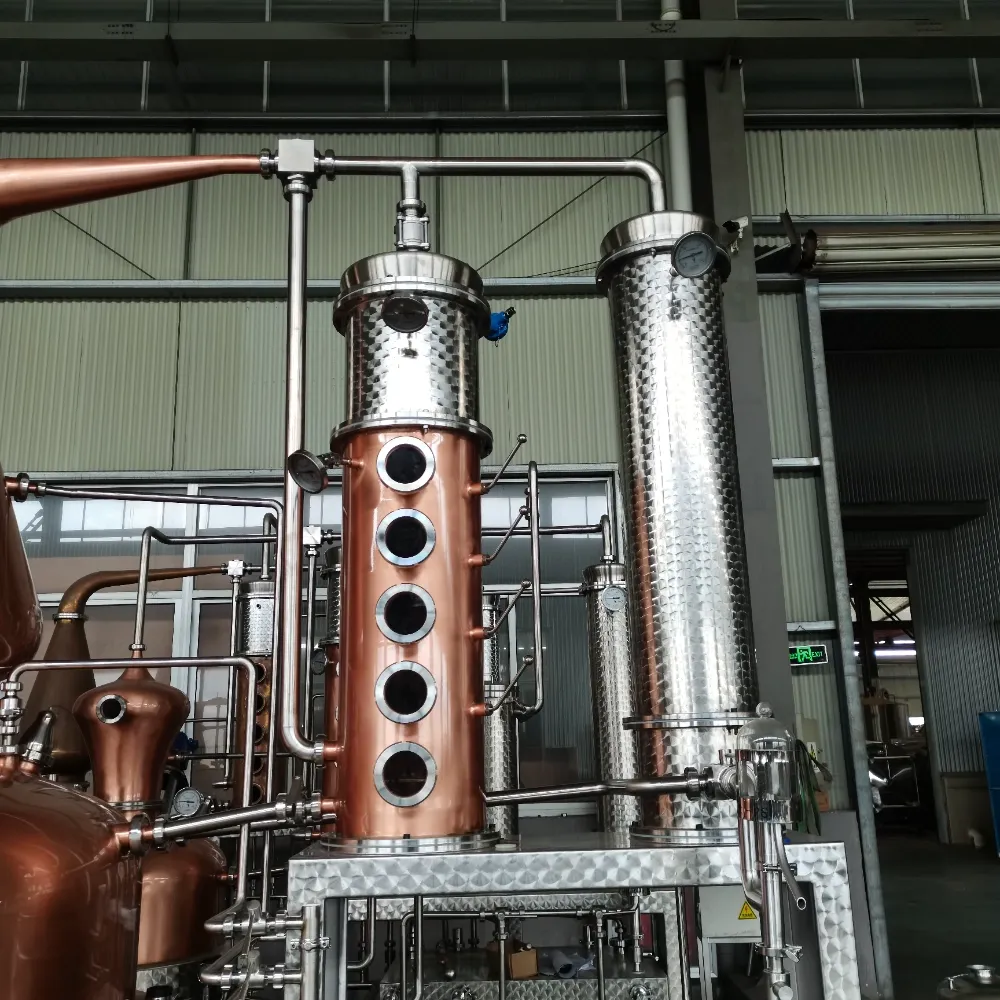

• TP2 Red Copper Distillation Assembly: Constructed from high‑grade TP2 red copper, including copper boiler, onion dome, swan neck, sight‑glass copper column and copper condenser. Copper material effectively removes sulphur compounds and builds rich, layered spirit aroma, ensuring consistent flavor performance batch‑to‑batch.

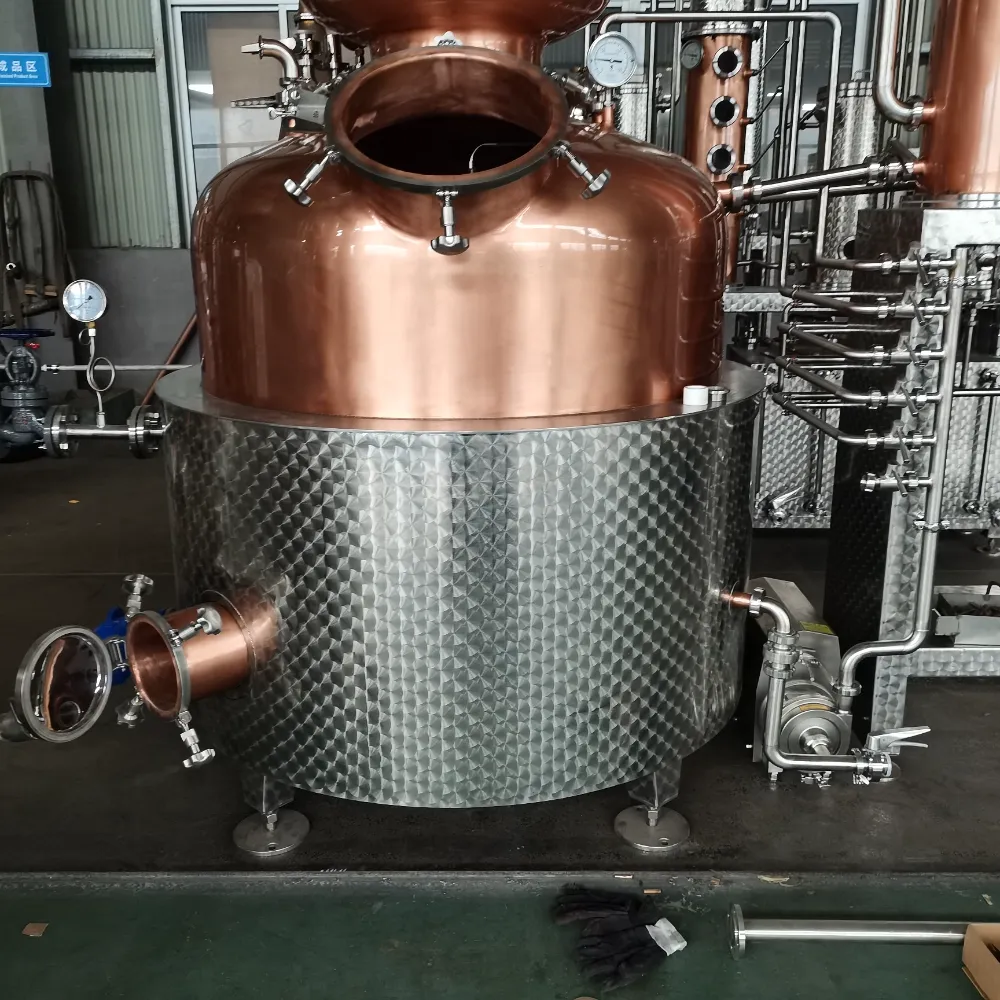

• Jacketed Heating Solution: Diamond‑pattern dimple jacket tank for efficient heat transfer. Standard steam heating configuration; multi‑stage electric heating or LPG gas burner heating are available as optional upgrades. It delivers gentle, uniform heating and precise temperature control to protect delicate volatile flavor compounds.
• Complete Skid‑Mounted Manifold & Piping Layout: Centralized valve manifold, pressure gauges, process pumps and full sanitary piping are pre‑assembled on one metal frame. Simplifies liquid transfer workflow, minimizes oxidation risk and cuts on‑site installation labor time.
• Factory Acceptance Test (FAT): Every complete unit undergoes full‑system FAT testing inside our workshop prior to shipment to verify mechanical tightness, heating performance and distillation function.
Custom‑Built For Your Distillery Project
• Flexible capacity range: 50L‑2000L working volume upon request
• Adjustable column configuration: bubble‑cap plates / perforated plates for different spirit proof requirements
• Optional automatic control cabinet with PT100 temperature & pressure real‑time monitoring
• Optional operation platform, access stairs and CIP cleaning assembly
• Custom finish for jacket shell: stainless steel diamond plate or mirror polishing
Factory Direct Support & Global Shipping
We supply complete fabrication drawings, detailed operation manual and remote technical guidance for installation & commissioning. All equipment is pre‑assembled and fully inspected before packing. Multiple trade terms are supported including EXW, FOB, CIF and DDP for worldwide distillery clients. Contact our team for your tailored distillery solution and quotation.
